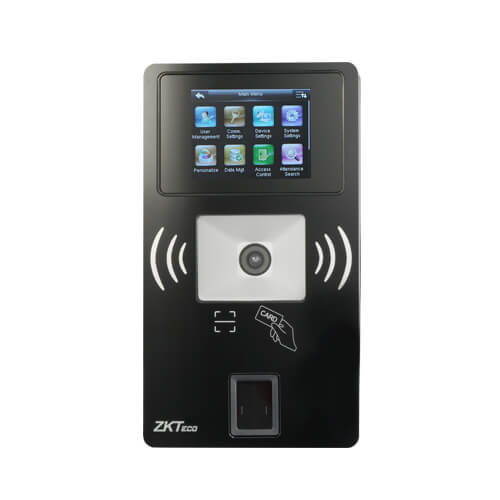

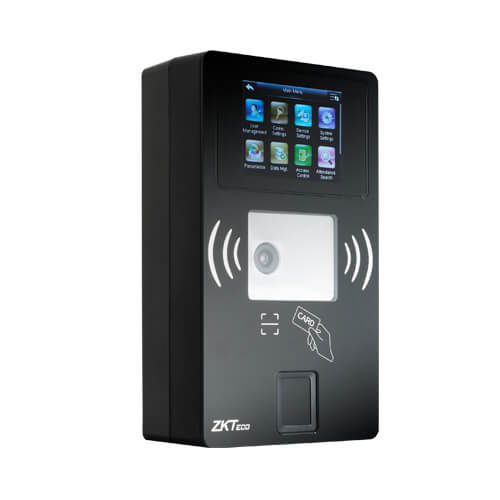

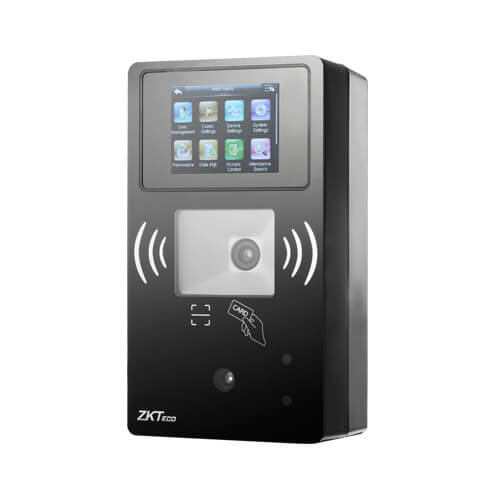

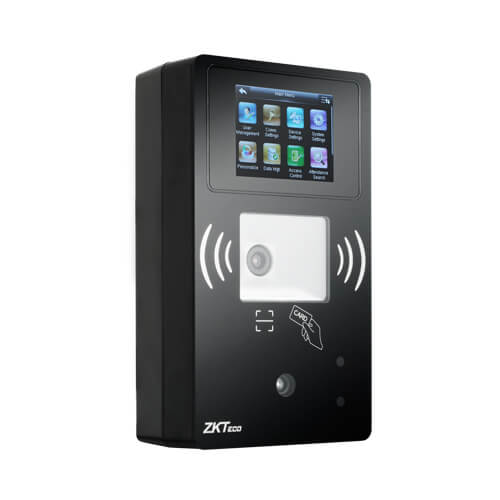

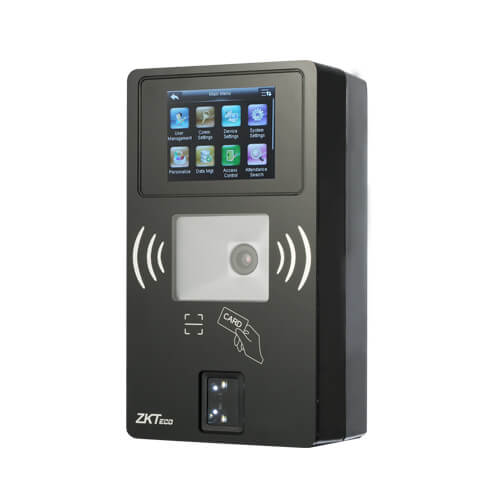

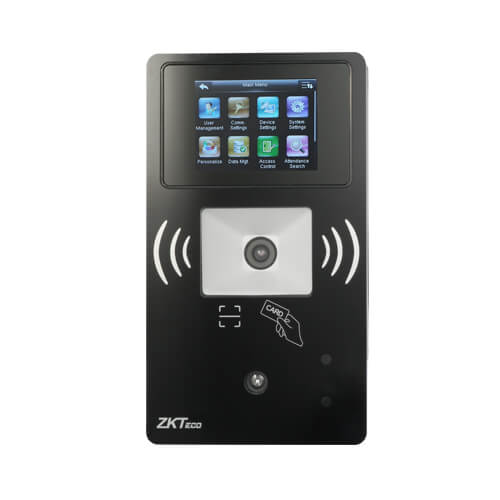

BR1200 QR code with fingerprint card access reader


The BR1200 is the latest in multi-security authentication biometrics with a QR code door access reader. This controller comes equipped with a fingerprint and RFID card reader for added security. The BR1200 is able to read multiple code formats, including PDF417, QR code model ½, Micro QR, Data Matrix, and GS1-Data bar. Additionally, it has the capability to register up to 10 fingerprints per employee for enhanced access control.

The BR1200 QR code door access reader supports RFID card, Mifare card, and HID card formats. Additionally, the BR1200 can function as a slave reader for other door access controllers. We supply and do installation.

The BR1200 QR code reader is not limited to scanning QR codes, it also has the capability to scan various types of cards. By issuing credentials to authorized personnel, the administrator can ensure that every activity is accurately recorded by the Datamine time attendance software, which also securely stores the data for future reference. Additionally, the BR1200 can be connected to a central controller to effectively manage access to your premises.

Display2.8-inch Touch Screen
ModelBR1200[FBE], BR1200[FBM], BR1200[PBE], BR1200[PBM]
User Capacity10,000 (Optional: 50,000)
Fingerprint Capacity 10,000 (Optional: 50,000)
Logs Capacity150,000
Scan Code FormatPDF417, QR code Model 1/2, Micro QR, Data Matrix, GS1-DataBar (Limited, Stacked, Expanded)
CommunicationTCP/IP, RS232
Access Control2ch Relay
Standard FunctionsSelf-service Query, DST, T9 Input, 9 Digital User ID, ADMS, DNS
SDK & SoftwarePUSH SDK, ZKBioSecurity
Power Supply12V 3A
Operating Temperature0~45 °C
Operating Humidity20% ~ 80%
Multibiometrics with QR Code, FP, Palm and RFID
Modular design for easy maintenance and disassembly
Multiple code scanning formats: PDF417, QR code Model 1/2, Micro QR, Data Matrix and GS1-DataBar.
2.8-inch screen to check information of verification
Special design for barrier integration
Built-in access controller to control barrier
