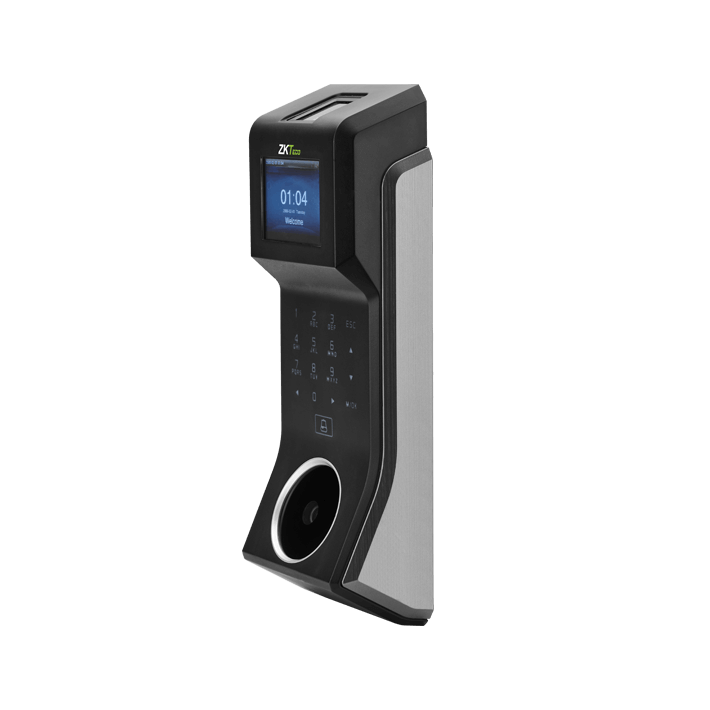

PA10 PALM RECOGNITION READER
PA10 is palm and fingerprint biometric door access system. PA10 Palm and fingerprint is hybrid biometric door access system. The palm verification includes palm print & palm vein therefore it’s not only contactless also support anti-spoof function. PA10 palm door access controller come with BioID fingerprint sensor for dry, wet and rough fingerprint scanning.
PA10 Palm and fingerprint door access controller is very small size and elegant design. PA10 Palm and fingerprint door access system come with touch keypad and RFID card reader module.
PA10 Singapore first palm and fingerprint door access system come with 2.4” color LCD screen and latest fingerprint scanner.
PA10 Palm and fingerprint biometric door access come with TCP/IP and RS485 for various communication and can be linked with 3rd party door access EM lock and door access accessories.
Display | 2.4inch TFT LCD Screen |
Palm Capacity | 800 |
Fingerprint Capacity | 3000 |
ID card Capacity | 3000 |
Transaction capacity | 150,000 |
Fingerprint Sensor | BioID sensor |
Display Language | English |
Algorithm Version | VX 10.0 |
Communications | RS232/485, TCP/IP, USB Host |
Sensing Area | 18mm x 22mm |
RF reader | EM proximity card (Build in) |
Access control interface | 3rd party EM lock, door sensor,exit button, alarm and door bell |
Wiegand Signal | Output and Input |
Verification | 1:1 Time <0.5 sec and 1:N Time <2 sec |
Power Supply | 12V DC, 3A |
Standards Compliance | CE, FCC |
Operating System | Linux |
Operating Temperature | 00C – 45C |
Operating Humidity | 20% - 80% |
Optional Functions | ID/Mifare/HID card, Web server and POe |
1 touch a second user recogition |
Fingerprint reader with durable and BioID sensor |
Stores 3000 templates, 3000cards and 150000 transactions |
Integrated smart card reader |
Build in USB port |
Multi authentications (FP, Palm, PIN, card) |
Multi Deployment (Standalone, LAN, WEB) |
Tamper proofs switch, Anti-passback and alarm outputs |
Audio-visual indications for acceptance and rejections of valid/invalid fingers scan and palm reading |
Related Products
-
View
Details
Multibio 800 Door access system
Multibio 800 is new face recognition door access device. Face recognition with fingerprint and card access system.
-
View
Details
F21 Biometric Door Access Reader
F21 New generation biometric door access controller. F21 biometric door access come with latest fingerprint algorithm and card reader.
-
View
Details
Multibio 700 Face recognition system
Multibio 700 is face recognition door access with fingerprint reader. Iface 700 come with face recognition, fingerprint, card and password.
-
View
Details

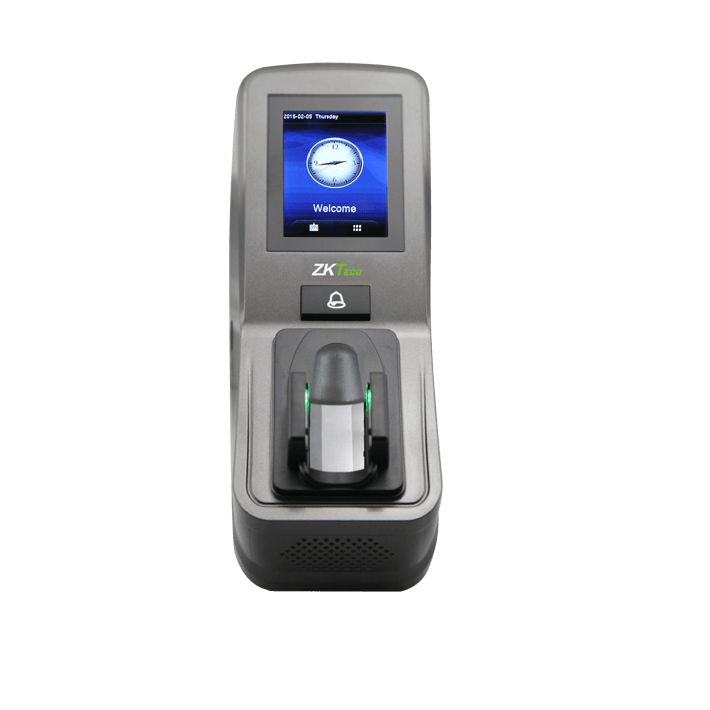

FV350 finger vein door access
