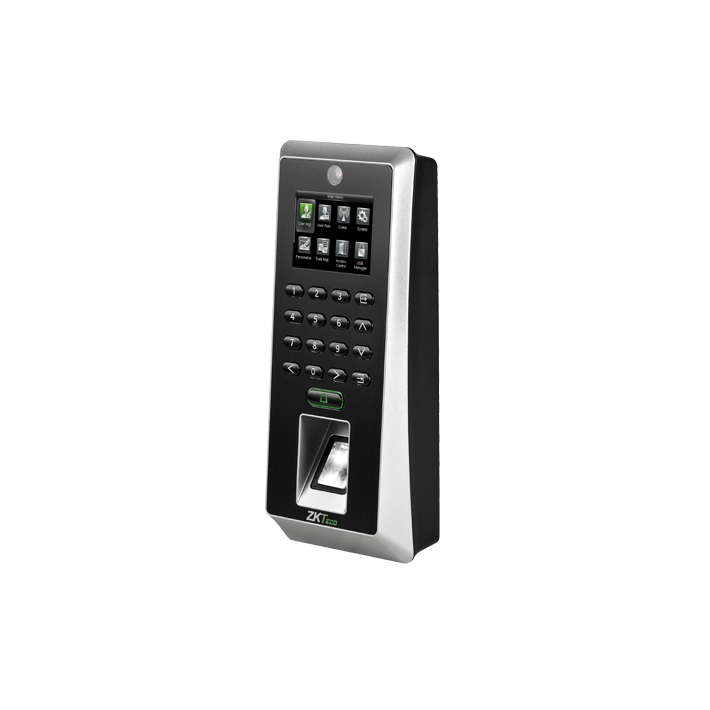

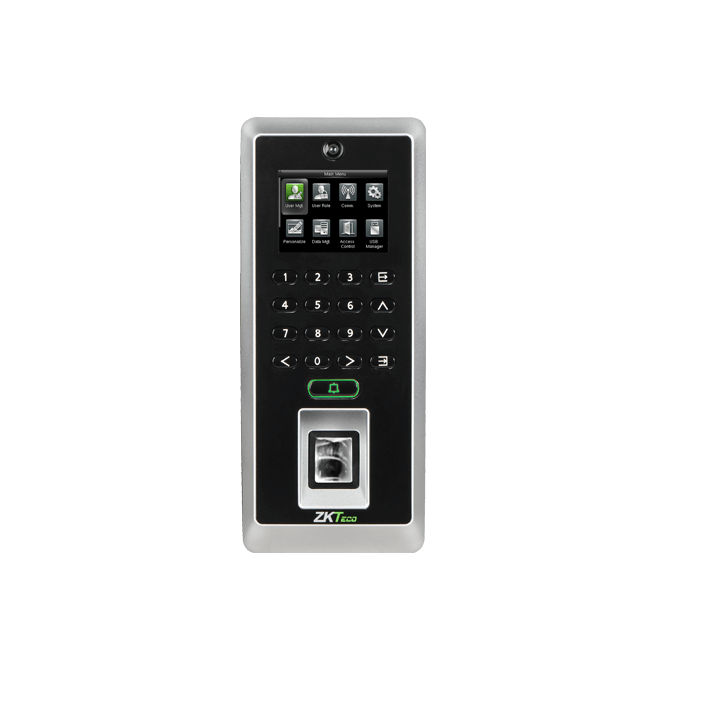

F21 fingerprint card access system
F21 is Singapore latest fingerprint T&A and access control terminal. F21 fingerprint reader come with advanced SILKID technology fingerprint scanner. F21 biometric reader is high identification for dry, wet and rough finger. Also come with live finger detecting capabilities.
Biometric F21 fingerprint door access system come with door access control software. Fingerprint door access control software can be set to control staff movement and set different level of access. F21 fingerprint have provision to connect fire alarm system.
F21 fingerprint door access reader support time attendance system. Use employees time IN/OUT to calculate number of working hours. F21 come with card module for contactless access.
| Display | 2.4" TFT LCD color Screen |
| User Capacity | 3000 |
| ID card Capacity | 5000 |
| Transaction Storage | 100,000 |
| Sensor | SilkID sensor (Latest) |
| Display Language | English |
| Algorithm Version | ZKFinger VX 10.0 |
| Communications | RS232/485, TCP/IP, USB Host |
| Sensing Area | 18mm x 22mm |
| RF reader | EM proximity card (Build in) |
| Access control interface | 3rd party EM lock, door sensor,exit button, alarm and door bell |
| Wiegand Signal | Input, Outpur and SRB |
| Verification | 1:1 Time <0.5 sec and 1:N Time <2 sec |
| Power Supply | 12V DC 3A |
| Standards Compliance | CE, FCC |
| Operating System | Linux |
| Operating Temperature | 0 ℃- 45 ℃ |
| Operating Humidity | 20% - 80% |
| Dimension | 86 x 205 x 45.1mm |
| Optional Functions | ID/Mifare/HID card, Web server,WDMS |
| 1 touch a second user recogition |
| Fingerprint reader with durable and highly accurate ZK Silk sensor |
| Stores 3000 templates, 5000cards and 100,000 transactions |
| Integrated smart card reader |
| Build in USB port |
| Multi authentications (FP, PIN, FP+PIN) |
| Multi Deployment (Standalone, LAN, WEB) |
| Tamper proofs switch and alarm outputs |
| Audio-visual indications for acceptance and rejections of valid/invalid fingers scan |
