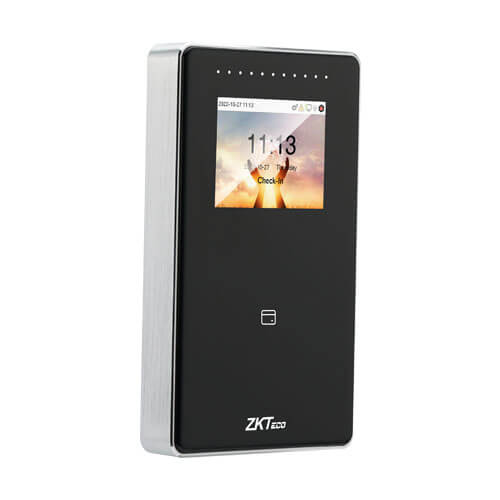

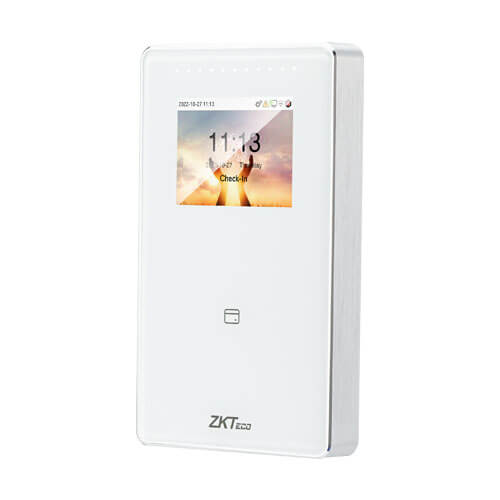

SC800 Weatherproof Outdoor Card Access System

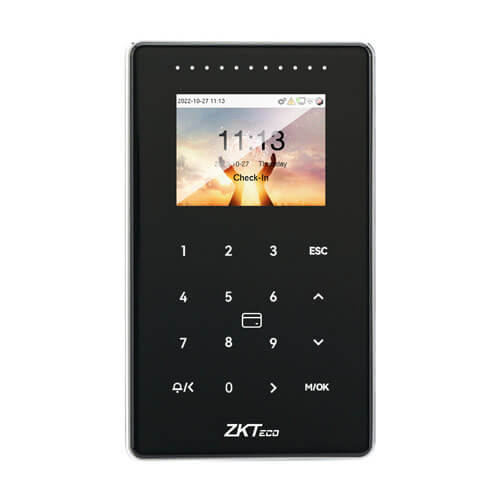

The DATAMINE SC800 is a Linux-based waterproof card access control terminal designed for outdoor door and gate access. Constructed with a durable mild metal frame housing and 2.5D tempered glass, the SC800 is IP65 waterproof and vandal-proof card access system. This terminal features a 2.4” color screen and a hidden touch keypad for added security and convenience.

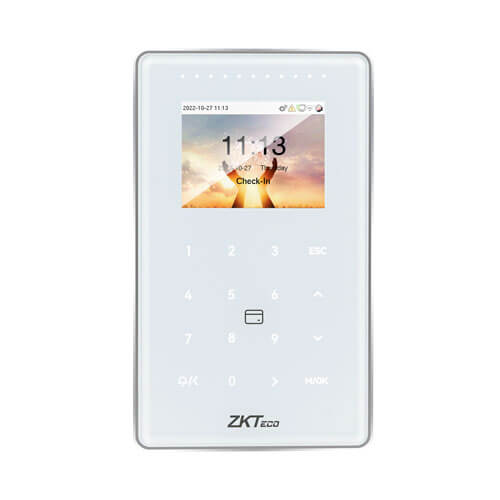

The SC800 weatherproof card access reader is equipped with a multi-tech RFID card module that supports 125Khz, 13.5Mhz cards, HID Prox, and HID iClass cards. The Datamine SC800 also supports access control push communication protocol for seamless integration and easy access. Additionally, the SC800 allows for mobile app control and remote access, providing convenience and flexibility for users.

IP65 waterproof, dustproof resistant and IK04 vandal proof
Supports multiple RFID modules and up to 100+ card types (including, ID / IC / Felica / Legic / DESfire EV1 / EV2 / HID Prox / HID iClass / etc.)
Support Access Control push conversion to Time Attendance software
Communication: TCP/IP, Wi-FI (Optional), Wiegand in&out, RS485 (for RS485 readers), OSDP (Ver2.1.7), RS232
Embedded web server for system configuration
Card capacity 50000 (Optional 100,000)
Indoor or outdoor door access or gate access usage
Display 2.4” TFT LCD color touch screen
Card Capacity 50,000 (Optional 100,000)
Transactions 200,000
Operation System Linux
Standard Functions ID Card, ADMS, T9 Input,DST, 9-digit User ID, Access Levels, Groups,Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes
Hardware 1Ghz Dual Core CPU; DDR2 64Mb RAM / 256MB ROM
Communication TCP/IP, WiFi (Optional), Wiegand input/output, RS485

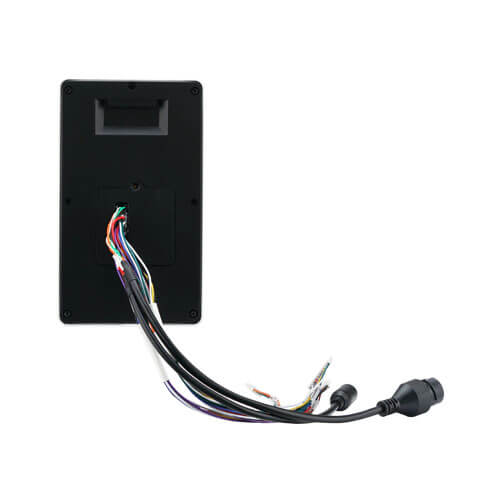

Access Control Interface 3rd Party Electric Lock, Door Sensor,Exit Button, Alarm output, Auxiliary Input
Card type supportStandard Module ID, Optional IC, DESFire EV1/EV2, Feliac, HID Prox and HID iClass
Indication Light Breathing light: White, Status light: Red / Green
Data Protection AES-256 Encryption
Optional Function WiFi, Multi-tech card module and printer
Power Supply 12V 3A
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Dimensions(L*W*H) 143 x 85 x 19.8 (mm)
Supported Software ZKBio CVAccess
Certification ISO14001, ISO9001, CE, FCC
