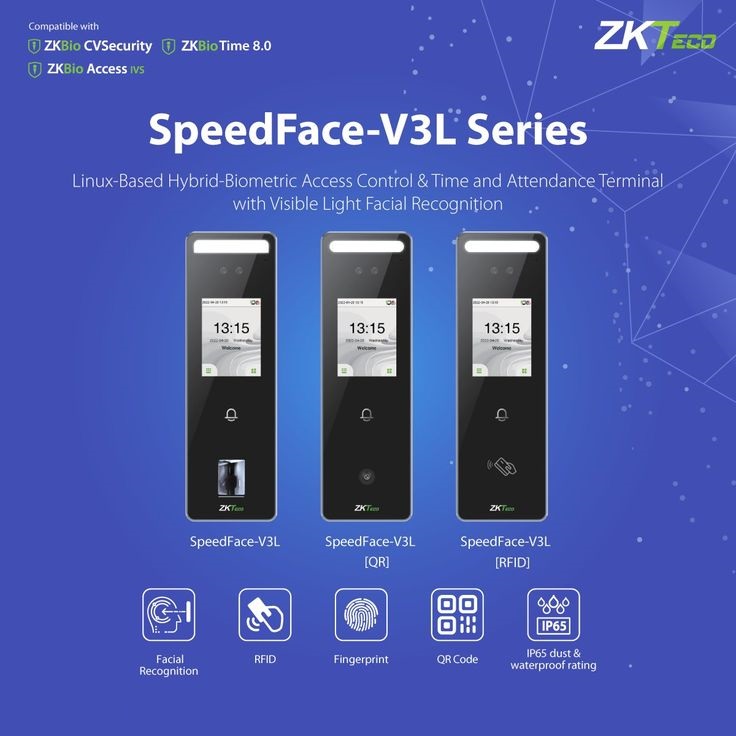

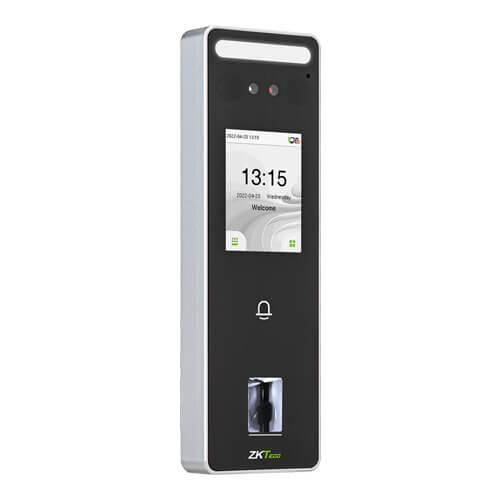

SpeedFace-V3L Face and Fingerprint recognition outdoor card access system


The SpeedFace V3L is a multi-authentication door access reader that combines face recognition with fingerprint, card and QR code capabilities. The SpeedFace V3L offers dual authentication methods, allowing users to verify their identity through both face recognition and fingerprint scanning. Additionally, users have the option to enhance by adding a proximity card access module or Mifare card module, as well as a PIN number for access. V3L come with IP65 waterproof protection for outdoor installation.

The SpeedFace V3L offers various versions of biometric combination authentication, including face recognition with fingerprint scanning, face recognition with a QR code reader, and face recognition with an RFID card module. The V3L biometric reader also support intercom with mobile access for opening door remotely. V3L can be linked with Kocom, Hikvison and Dahua audio video intercom to control remotely.

Visible Light Facial Recognition
Anti-spoofing algorithm against print attack (laser, color, and B/W photos), videos attack and 3D mask attack
Multiple verification methods: Face / Fingerprint / QR Code / Card / Password
Available card modules: 125KHz ID card (EM) /13.56MHz IC card (MF) / CPASS card
Hidden Supplement light design with adjustable brightness
Capacity of 500 face templates, 3000 Fingeprint, 3000 RFID card
The IP65 protection rating, which indicates waterproof and dustproof capabilities, ensures reliable performance in outdoor weather conditions.
Display 2.4” ISP color touch LCD screen
Face Capacity 500 (1:N) 1500 (Optional)
Fingerprint Capacity 3,000 (1:N) (Standard); 5000 (Optional)
Card Capacity 3,000 (1:N)
Transactions 200,000
Operation System Linux
Standard Functions ID Card, ADMS, T9 Input,DST, Camera, 9-digit User ID, Access Levels, Groups,Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes
Hardware 1.2GHz Dual Core CPU; 256Mb RAM / 512MB ROM; 1MP Binocular Camera; Adjustable LED Supplement Light
Communication TCP/IP, WiFi (Optional), Wiegand input/output, RS485
Access Control Interface 3rd Party Electric Lock, Door Sensor,Exit Button, Alarm output, Auxiliary Input
Optional Functions13.56MHz IC Card (MF)
Facial Recognition Speed ≤1s
Biometrics Algorithms ZKFace 3.5 & ZKFinger V10.0
Power Supply 12V 3A
Working Humidity 20% - 80%
Working Temperature -5°C ~ 45°C (14°F ~ 113°F)
Dimensions(L*W*H) 185 * 58.5 * 20 (mm)
Supported Software ZKBio CVAccess, ZSmart
Ingress Protection Rating IP65
