Evolis Zenius card Printer
Zenius ID card printer
Zenius ID card printer
200 prints YMCKO ribbon
1000 prints monochrome ribbon

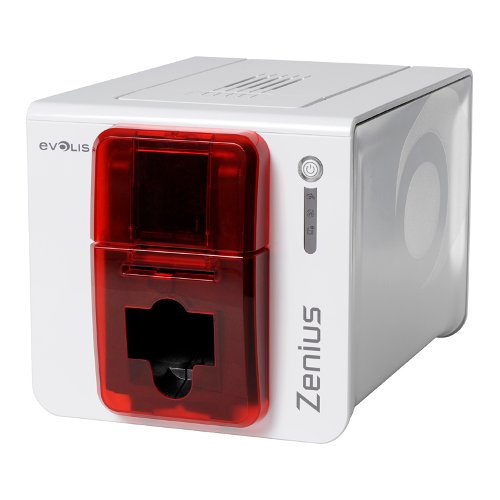

EVOLIS ZENIUS ID CARD PRINTER

Datamine is Singapore cost effective ID card printer provider. We have economic ID card printers such as Pebble4 ID card printer, Tatto2 ID card printer, Zenius ID card printer and Primacy ID card printer to choose within your budget. We supply full range of ID card printer consumable. For ID card printer demo and ID card printing service call or email to us.

Zenius printers produce professional results thanks to the 300 dpi resolution and edge to edge printing. Your logos, photos, barcodes and text are rendered perfectly on your cards, conveying a positive image of your organization.

Zenius packs all its advanced features into a very small footprint. Hardly larger than a standard sheet of paper, Zenius is also very quiet - 46 decibels in operation - and fits perfectly into any environment, be it the office or a customer service counter.

Zenius was designed to be intuitive and easy to use.You insert your cards individually or use the automatic feeder, and the final product is delivered on the front of the printer.With the Evolis Premium Suite® software you can receive notifications and easily control the printer from your computer.Evolis High Trust® ribbons are easy to install and automatically recognized by the printer.

Zenius was developed specifically for printing cards individually or in small runs. You can print as needed, when needed, in quantities that are right for you. Zenius can print a color card in 30 seconds and up to 150 color cards per hour, so you and your customers don’t have to wait.

Zenius is incredibly flexible. Suitable for multiple applications, the «Expert» version of the printer features combinable encoding functions: magnetic encoding, contact and contactless chips. It takes just a few minutes to install these modules!

General features

  • Direct-to-card dye-sublimation/Resin thermal transfer
  • Single-sided printing, edge-to-edge
  • 300 dpi print head (11.8 dots/mm)
  • 16 million colors
  • 16MB memory (RAM), 32 MB for the Expert version

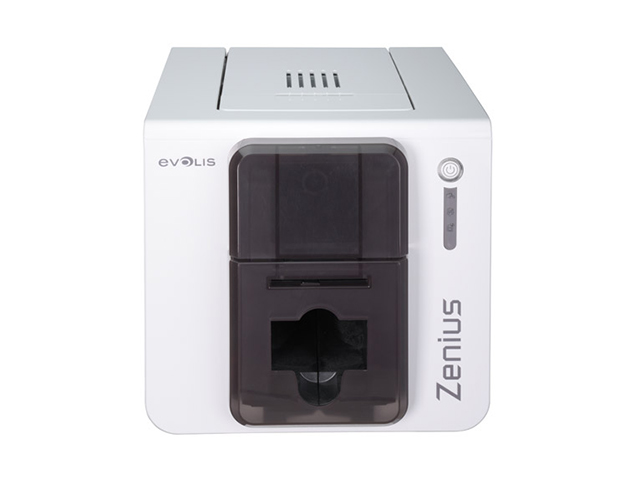

  • Colors available: fire red & grey brown

Printing performances

  • Color (YMCKO): 120 - 150 cards/hour1
  • Monochrome: 400 - 500 cards/hour

Additional encoding modules

  • Available modules on the Expert version:

    • Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
    • Smart contact station ISO 7816-2
    • Contact smart card encoder - PC/SC, EMV 2000-1
    • Contactless smart card encoder - ISO 14443A, B, ISO15693, Mifare, DesFire, HID iCLASS
    • Other specific encoders upon request
  • Internal USB ports
  • Options can be combined
  • Factory-installed or installed on-site

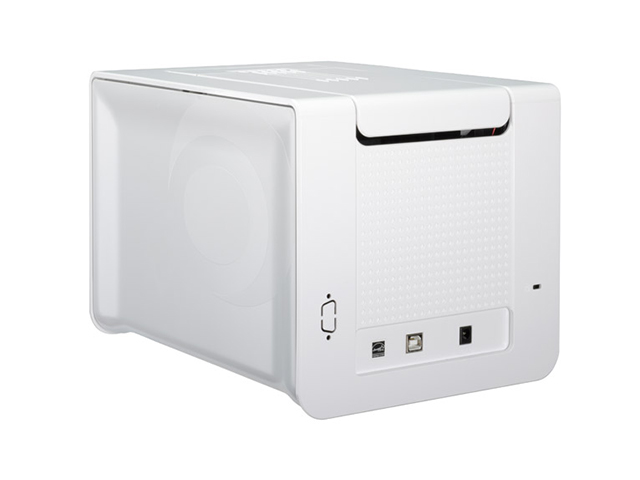

Interfaces

  • USB (1.0, 1.1, 2.0, 3.0), cable supplied
  • Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led) on the Expert version

Safety

  • Support for Kensington® security lock

  • Data encryption for magnetic encoding

Display

  • Printer LEDs
  • Graphical notifications from the printer2: cleaning alerts, empty/low level ribbon alert, etc.

Card management and specifications

  • Automatic or manual feeding
  • Feeder capacity: 50 cards (0.76 mm - 30 mil)
  • Output hopper capacity: 20 cards (0.76 mm - 30 mil)
  • Card thickness: 0.25 to 0.76 mm (10 to 30 mil), gauge adjustment
  • Card types:
    • PVC cards
    • Composite PVC cards
    • PET cards
    • ABS cards1
    • Special varnished cards1
  • Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)

Evolis High Trust® ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

  • Automatic identification and setting
  • Delivered in a drop-in cassette for easy handling
  • Ribbon saver for monochrome printing

Software

  • Delivered with Evolis Premium Suite® for Windows®:

    • Printer driver
    • Evolis Print Center for printer administration and settings
    • Evolis Printer Manager for graphical notification3
    • 24/7 online support
    • Compatible with Windows® (32/64 bits): XP SP3, Vista,W7, W8, W10
  • Delivered with cardPresso XXS Lite for designing and editing badges:
    • Internal database up to 50 records
    • Windows® (from XP onwards) and Mac OS X
  • Delivered with a driver for Mac OS X (from 10.5 onwards)
  • Linux OS upon request
  • Evolis Premium SDK for remote supervision of the printer, while facilitating and speeding up integrationinto IT systems

Eco-friendly design, certifications and statement of compliance

  • Standby, sleep modes & reduced energy consumption
  • CE, FCC, IEC, VCCI, CCC, KC, BIS, EAC
  • RoHS

Size and weight

  • Size (H x W x D): 195 x 205 x 315 mm (7.68’’ x 8.07’’ x 12.4’’)
  • Weight: 3.3kg (7.3lbs)

Warranty

  • 2-year warranty (printer and printhead)4
  • Warranty extension available as an option

1 Under specific conditions / 2 Depends on the Windows® version / 3 Requires the .net 4.0 client profile version / 4 Warranty subject to observance of specific conditions and use of Evolis High Trust® ribbons.
