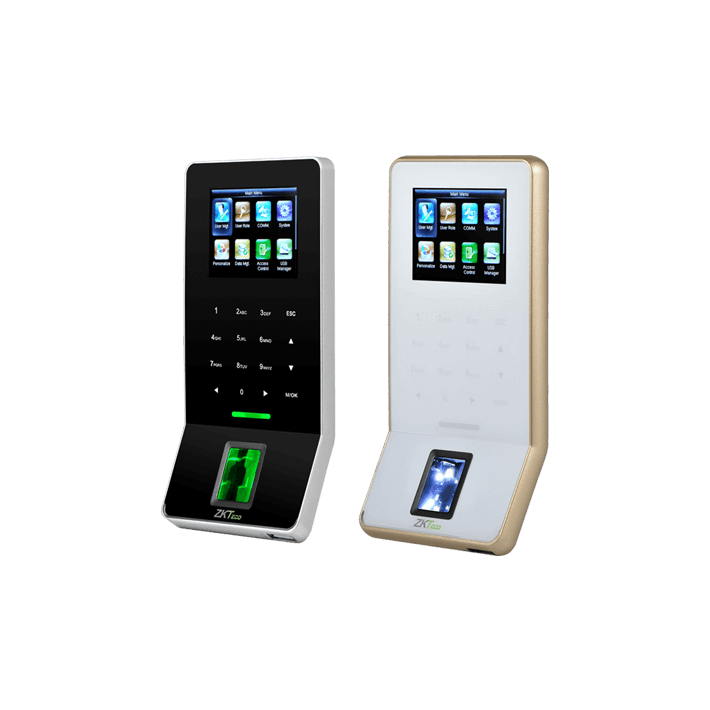

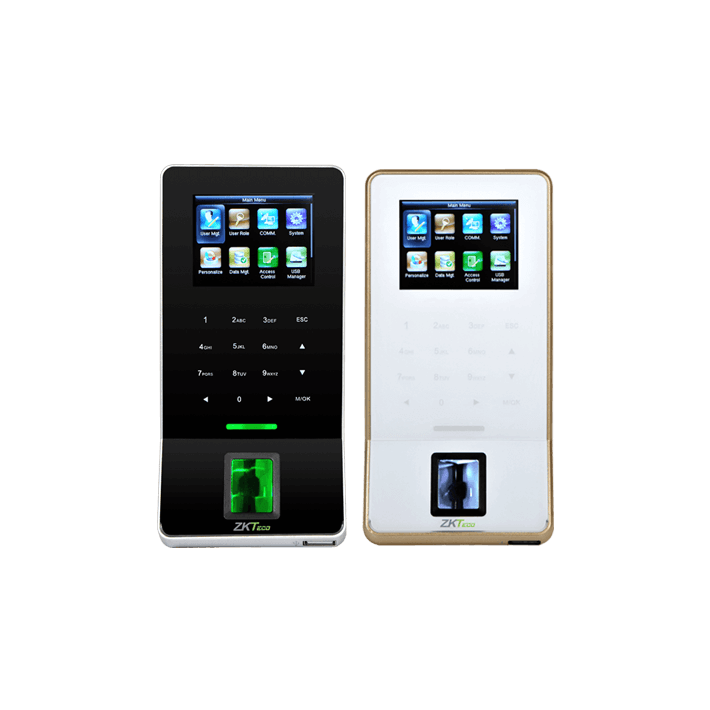

F22 Wi-Fi BIOMETRIC FINGERPRINT READER


F22 is ultra-thin fingerprint time attendance and door access control terminal with BioID fingerprint sensor, Wi-Fi interface and advanced fingerprint algorithm for better performance and excellent matching speed.

F22 is come with BioID fingerprint sensor adopt fast commercial-based fingerprint high-image quality infrared detection for fingerprint scanning.

F22 fingerprint wireless door access reader come with touch keypad suitable for standalone or multi door access environment. Also support TCP/IP, RS485 for different networks.

F22 fingerprint door access system reader can be integrated with ONLINE time attendance and singapore web-based payroll.

Datamine provided original EBELCO door access accessories such as EM lock, push button, Emergency break glass, Touch exit, remote control and power supply. Also we do supply hardware and install the door access.

Display2.4-inch TFT LCD Color Screen
User Capacity 3000
ID card Capacity5000 (Optional) ID or mifare card
Transaction Capacity30,000
SensorBioID Sensor / SilkID Sensor (optional)
Display Language English
Algorithm VersionZKFinger VX 10.0
CommunicationsRS232/485, TCP/IP, USB-host, Wi-Fi
Sensing Area18mm x 22mm
RF reader EM proximity card (Build in)
Access control interface3rd party EM lock, door sensor,exit button, alarm and door bell
Wiegand SignalInput, Output
Verification 1:1 Time <0.5 sec and 1:N Time <2 sec
Power Supply 12V DC 3A
Standards Compliance CE, FCC
Operating System Linux
Operating Temperature 00C – 45C
Operating Humidity 20% - 80%
Dimension158.5 x 78.0 x 19.4mm (H x W X D)
Optional Functions ID/Mifare/HID card, Web server
2.4-inch TFT color screen and Touch keys
Ultra thin and elegant design
Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
Standard Wi-Fi
Network interface by TCP/IP or RS485
Multi authentications (FP, PIN, FP+PIN)
Multi Deployment (Standalone, LAN, WEB)
Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices
