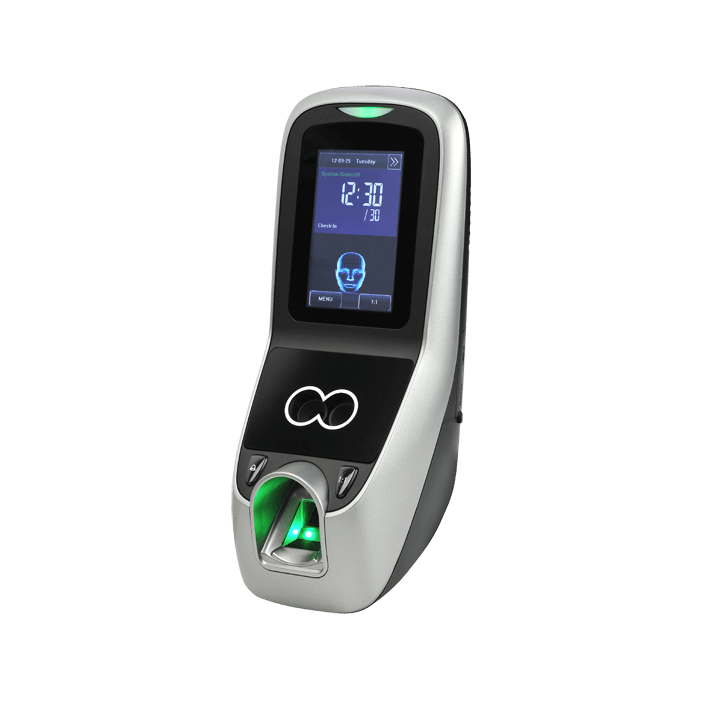

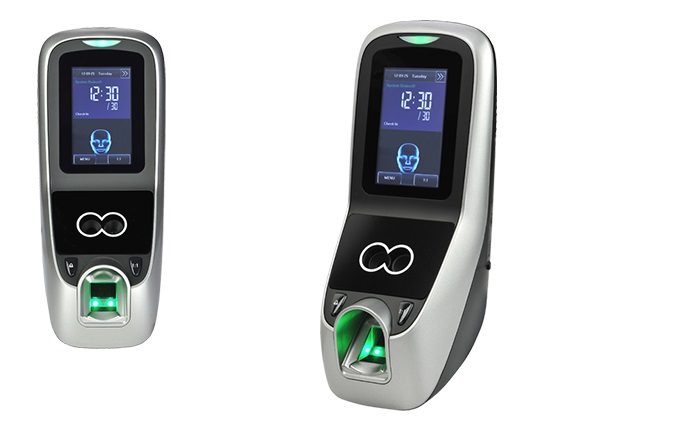

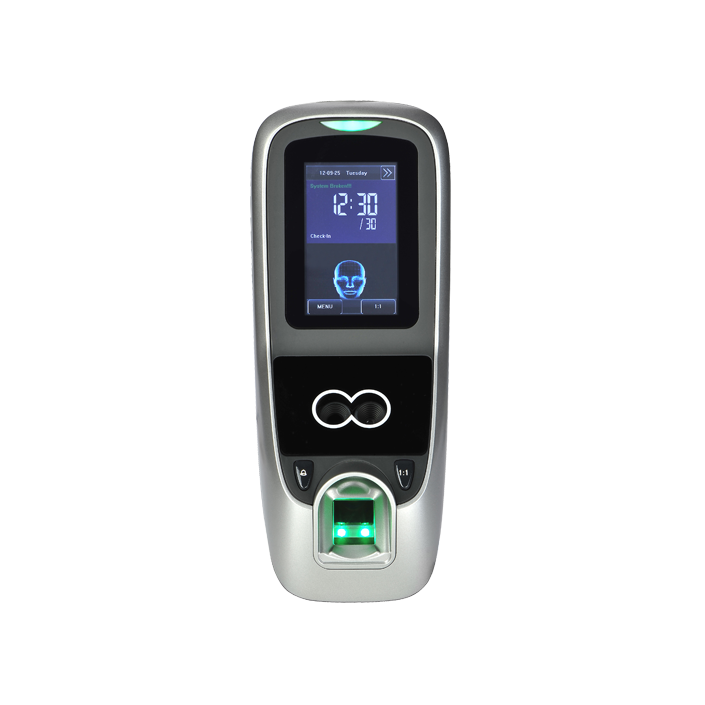

MULTIBIO 700 FACE RECOGNITION DOOR ACCESS
Datamine is Singapore reliable face recognition door access system provider. Face recognition door access system is contactless and use face to authenticate the door access. Multibio 700 face recognition door access reader is come with face recognition, fingerprint and RFID card module. Face recognition device can be used for time attendance system also.
Multibio 700 face recognition door access security system is new generation of multi biometric authentication device. Can integrated with face recognition with Mifare card or proximity card or HID card module. Also, can use PIN to access the door.
MultiBio700 face recognition security machine stores 1500 face and 2000 fingerprint templates and identify users by 1:N mode. When users show face into the Multibio 700 face door access camera, it will capture the position, face size, and shape of user's eyes, nose and jaw features, these parameters are then used to create a biometric template which is then used to subsequently verify or identify each user.
Multibio 700 face recognition door access security device can be used as a standalone access control reader by connecting a door EM lock, door exit button, alarm and door sensor to the relay contacts. The Wiegand IN and OUT ports can be used to connect 3rd party access control panels and accessories. The Multibio 700 door access reader come with USB port for offline data backup/management.
Display | 3-inch Touch Screen |
Face Capacity | 1,500 (1:N) |
Fingerprint Capacity | 2,000 |
ID Card Capacity(optional) | 10,000 |
Log Capacity | 100,000 |
Camera | High Resolution Infrared Camera |
Sensor | ZK Optical Sensor |
Communication | TCP/IP, RS232/485, USB-host |
Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, wired doorbell |
Anti-pass back Function | Yes |
Wiegand Signal | Input & Output |
Standard Access Control Functions | Time Zone, Group, Multi-identification Duress mode, Anti-passback, Tamper alarm |
Power supply | 12V 3A |
Operating temp | 0c- 45c |
Operating Humidity | 20%-80% |
Dimension(L*H*D)mm | 275*100*195 |
Optional Functions | ID/Mifare/HID card, Web server |
1 stand or 1 touch a second user recognition |
Stores 1500 faces and 2000 fingerprint templates |
20 verification modes are available to improve security level. Default verification modes are Fingerprint only, Face only or RFID only. Other 19 modes are available. |
Wiegand input&output |
Network interfaces for TCP/IP or RS232/485 |
Anti-passback |
Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell |
Infra-red optical system enables user-identification in poorly light environments |
Related Products
-
View
Details

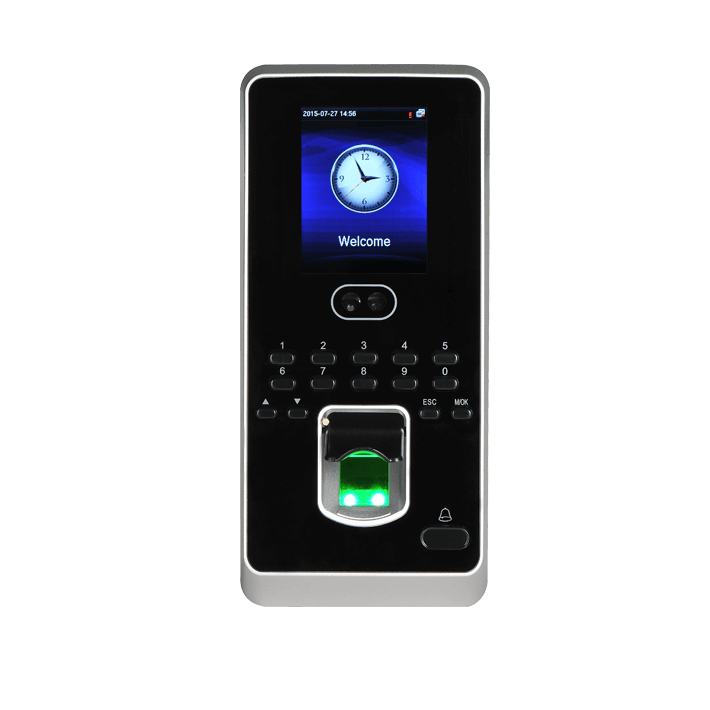

Multibio 800 Door access system
Multibio 800 is new face recognition door access system device. Face recognition with fingerprint and ID card access system.
-
View
Details

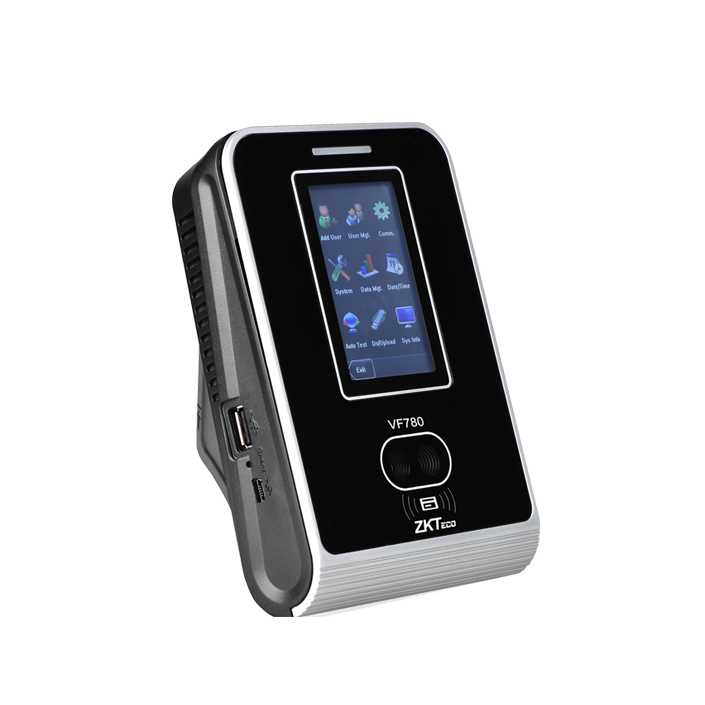

VF780 Facial Door access system
VF780 is small and entry level face recognition door access system device. VF780 is come with face recognition and RFID card module. Its good to use for small office.
-
View
Details

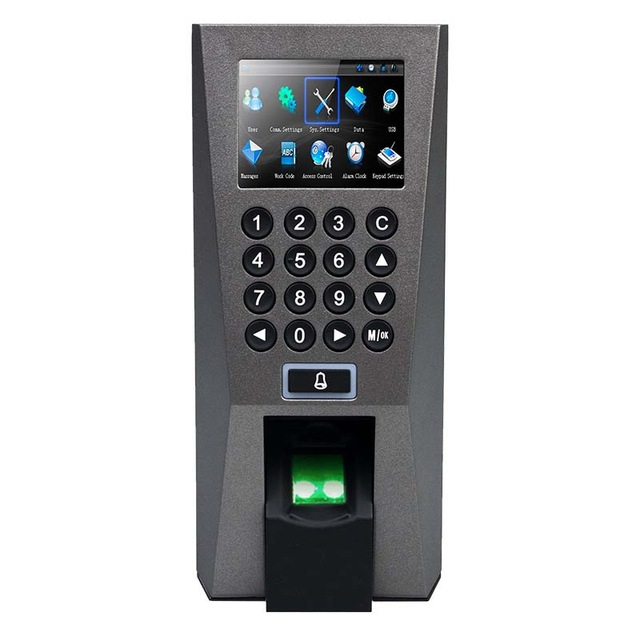

F18 Biometric door access reader
