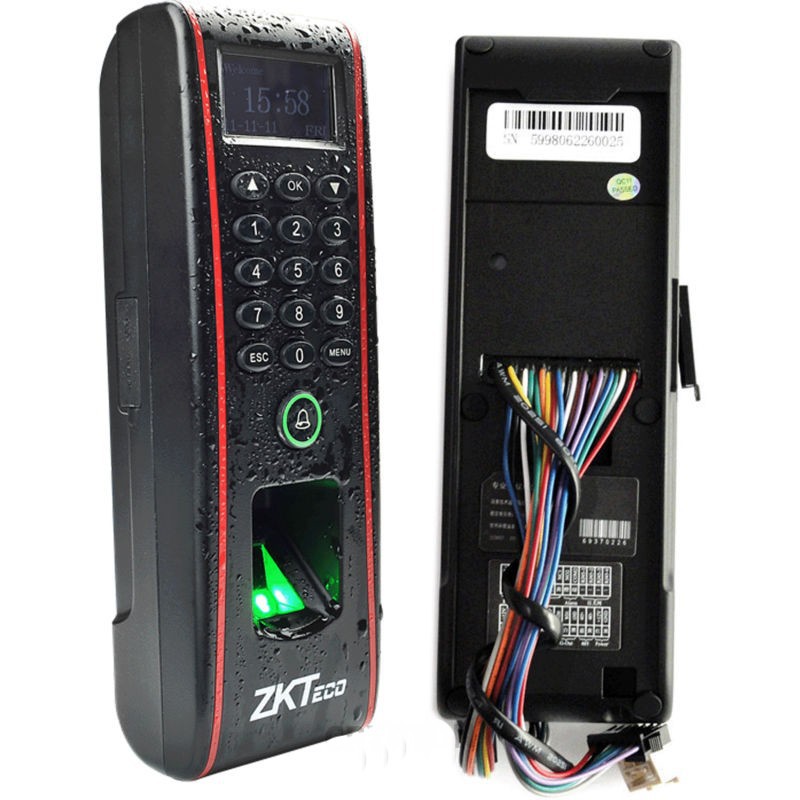

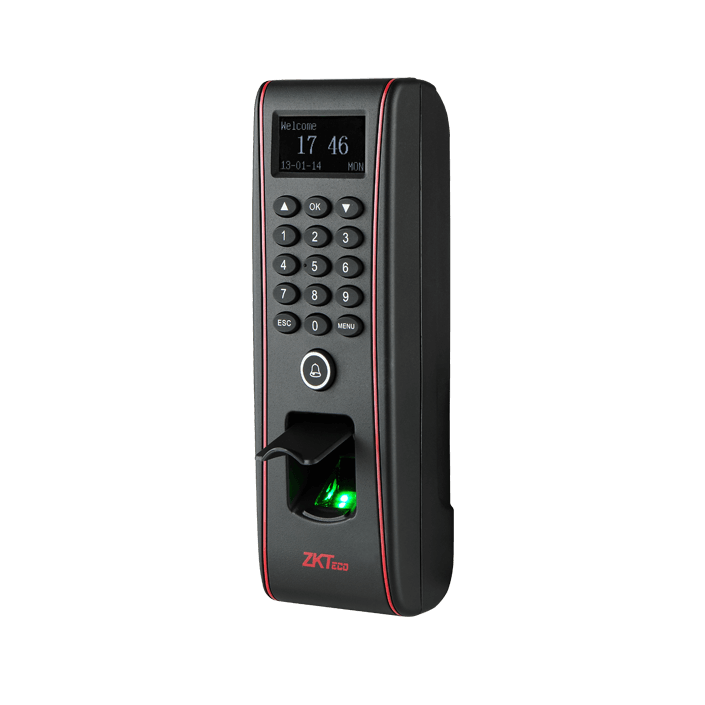

TF1700 Fingerprint Outdoor Card Access System (IP65)


Introducing the TF1700 Biometric Fingerprint Card Access System, a state-of-the-art solution for secure access control in Singapore. Designed for outdoor use, this IP65-rated fingerprint terminal is perfect for condo gates, Private property gate, and exterior doors, offering exceptional durability against all weather conditions.

Ideal for both residential and commercial applications, the TF1700 enhances security for homes, offices, shops, garages, warehouse and factories. With its advanced fingerprint and card access capabilities, you can enjoy convenient and efficient entry options. Upgrade your access control system today and ensure your property is always secure with the innovative TF1700.

The TF1700 outdoor biometric reader come with IP67 rating VIRO gate lock or Electro magnetic lock with accessories. Datamine provide complete supply and installation for any type of doors. Also we do service and repair job gate access system.

Fingerprint SensorInfrared detection fingerprint sensor
Algorithm VersionZK Finger VX10.0
CommunicationTCP/IP, RS485, USB Host
Fingerprint Capacity3,000 Fingerprints(8,000 Optional)
Card Capacity 10,000 Cards
Log Capacity50,000 Transactions
Display Language English
RF CardEM(standard)/Mifare(optional)
AuthenticationFinger/PIN/Card
Display128 x 64 OLED
RF reader EM proximity card (Build in)
Access control interface3rd party EM lock, door sensor,exit button, alarm and door bell
Wiegand Signal Output and Input
Verification 1:1 Time <0.5 sec and 1:N Time <2 sec
Power Supply 12V DC
Standards Compliance CE, FCC
Operating System Linux
Operating Temperature-10 °C~50 °C (14°F ~ 122°F)
Operating Humidity 20% - 80%
Size62.5mm x 185mm x 41.5mm (W x H x D)
Optional Functions ID/Mifare/HID card, Web server
Rugged structure for outdoor installation and extra durability
IP65 rated waterproof and weatherproof structure
One of the world's smallest fingerprint terminals
Sleek and slim design for narrow spaces
Fast and accurate fingerprint algorithm
1:3000 fingerprint identification in 1 second
USB-host, Wiegand input & output
Full access control features
Anti-passback setting, easy operation and management
Graphic LCD, buzzer, 3×5 keypads and doorbell
