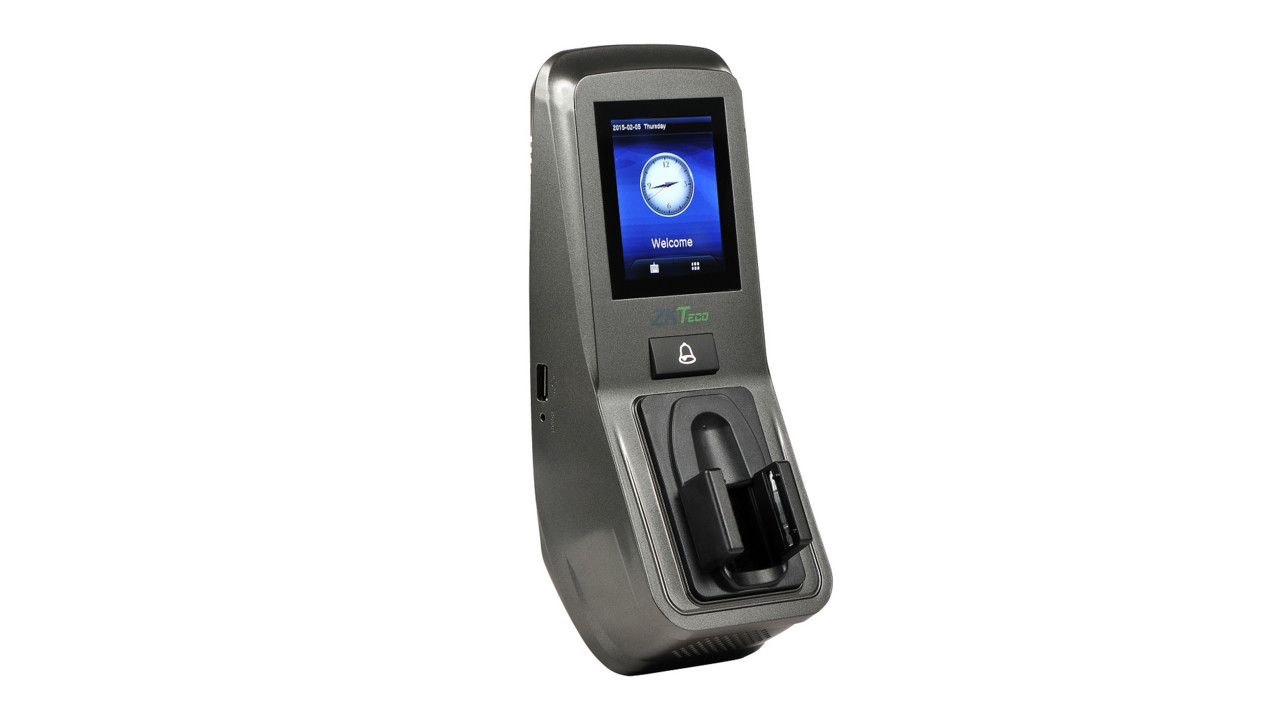

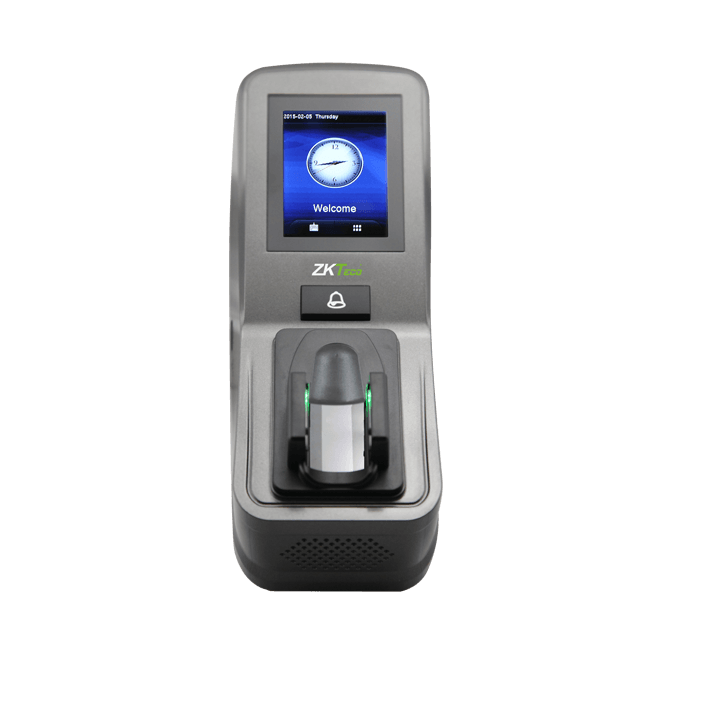

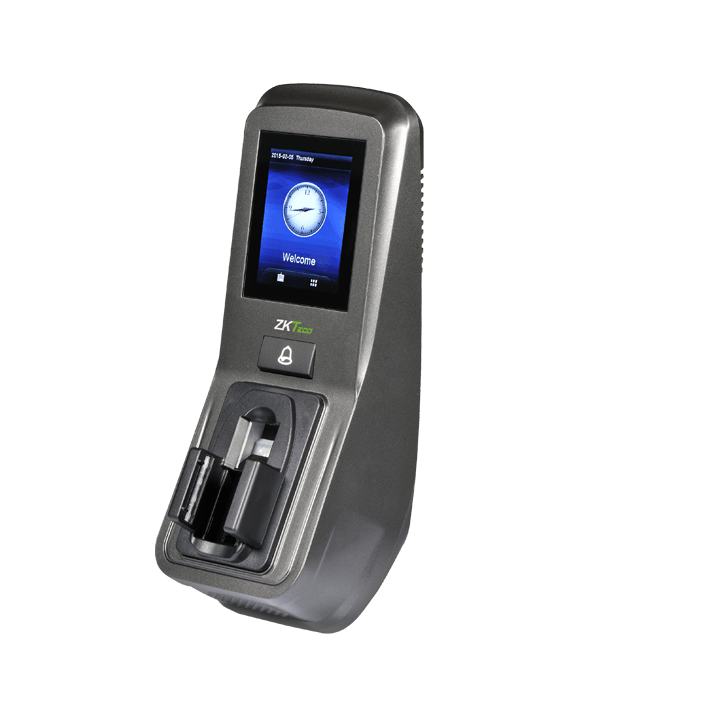

FV350 FINGER VEIN DOOR ACCESS SYSTEM


FV350 is a multi-biometric door access system. FV350 finger vein door access capture finger vein and fingerprint data at the same time. FV350 finger vein is intuitive and highly secured enhancing security with biometric door access.

FV350 finger vein door access use infrared rays to illuminates the vein pattern and convert in to biometric template. At the same time fingerprint pattern also capture and convert in to biometric template to store for subsequent finger vein matching.

FV350 finger vein door access system can be linked with fire alarm system and third parry system. Also linked with security alarm with telephone for the door access status. Datamine supply door access accessories and installation with reasonable price in singapore.

Display2.8 inch capacitive Screen
Vein Capacity1000
Fingerprint Capacity1000 Templates
Card Capacity2000(Optional) ID or Mifare card/HID card
Transaction Capacity100,000 Transactions
Core boardZMM220
CPU1.2GMHz
CommunicationRS485, TCP/IP, USB-host
Access Control Interface3rd Party Electric Lock,Door Sensor, Exit Button, Alarm, Doorbell, Wiegand In/Out
Auxiliary terminal1 Aux. input
Standard FunctionDST, Automatic Status Switch, Anti-passback, Scheduled-Bell, PhotoID
Power Supply12V DC,3A
Operating Temperature0 °C- 45 °C
Operating Humidity20%-80%
Dimensions232mm×91mm×117mm(length×width×thickness)
SDKPULL SDK (new firmware)

Multi-biometric reader with finger vein and fingerprint authentication

Unsurpassed performance with highly accurate finger vein recognition technology

Intuitive graphical user interface and touch screen display for rich user experience

Can store upto 1000 vein and 1000 fingerprints and identify in less than 2 seconds

Complete built in Access Control functionality and can operate without a dedicated computer

Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
