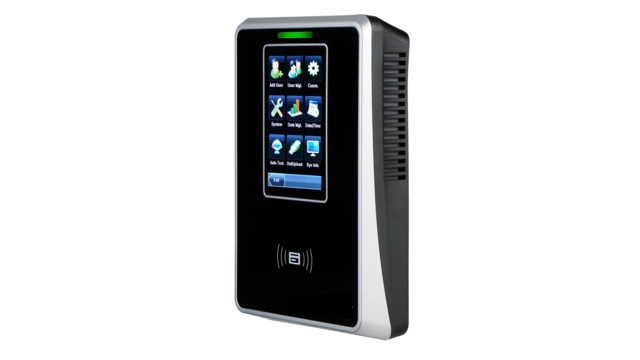

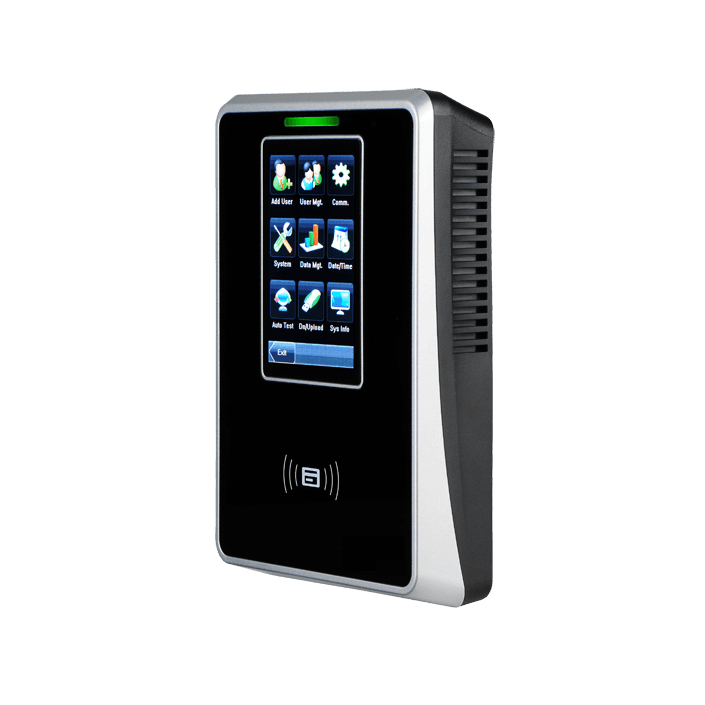

SC700 is Singapore touch screen proximity card door access system. SC700 is RFID card access reader, can configure different frequency as MIFARE card, HID card and EZLINK card. Employees can tap the RFID card in to the door access system reader and authenticate. The door access reader will record the employees time in attendance. Employees can press the exit button to exit form office.

SC700 proximity RFIR card door access system can configure to door access software. Access control software will help to setup employee’s entry and exit policy.

SC700 touch screen proximity door access system allows to use card and PIN for each office staff.

Singapore proximity door access system controller add on Ebelco door access accessories such as EM lock, Emergency break glass, Push exit button, ZL bracket and power supply. Datamine provide quality workmanship to install the door access system. RFID door access system come with ONE-year warranty.

FirmwarePULL SDK
Display3 Inches Touch Screen
ID Card Capacity30,000
Logs Capacity100,000
CommunicationTCP/IP,USB Host
Standard FunctionsID card, Automatic Status Switch, T9 input,Multi-verification Method
Access Control Interface3rd Party Electric Lock, Door Sensor,Exit Button,Alarm
Wiegand InferfaceWiegand input&output
Optional FunctionsMifare Card / HID card
Power Supply12V/3A
Operating Temperature0°C ~ 45°C
Operating Humidity20% ~ 80%
Dimensions (H×W×D)160×104.7×36mm
3-inch TFT color display and touch screen for ease of operation and enrich user experience
Embedded with PULL firmware which is standard with ZKAccess3.5 management software
Incorporate with EM card reader and optional Mifare/HID card reader
Store up to 30,000 cards and 100,000 records
Relay outputs for electromagnetic lock and alarm; Digital inputs for door status sensor and exit switch
Wiegand input and output for connecting third party card readers or controllers for dual factor authentication
Audio and Visual indication using speakers and LEDs
Multi-languages display available on request
