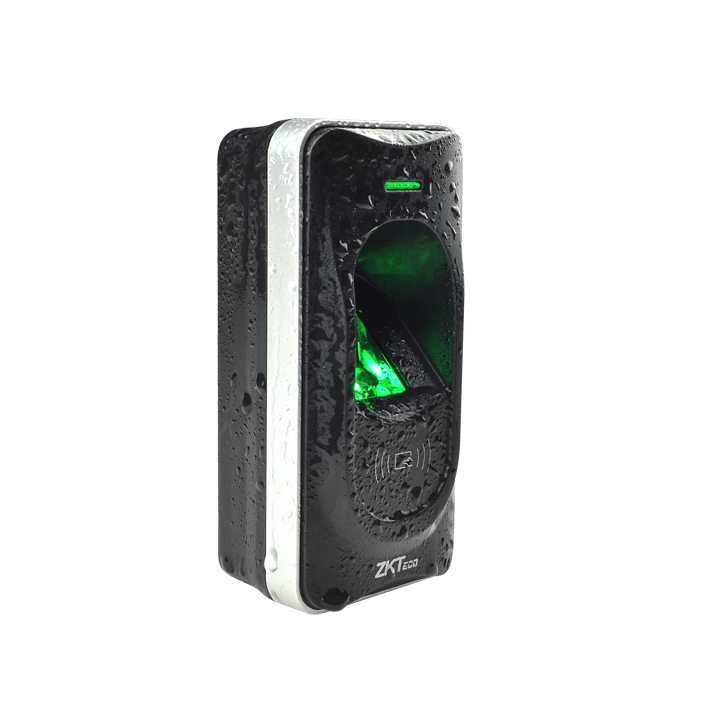

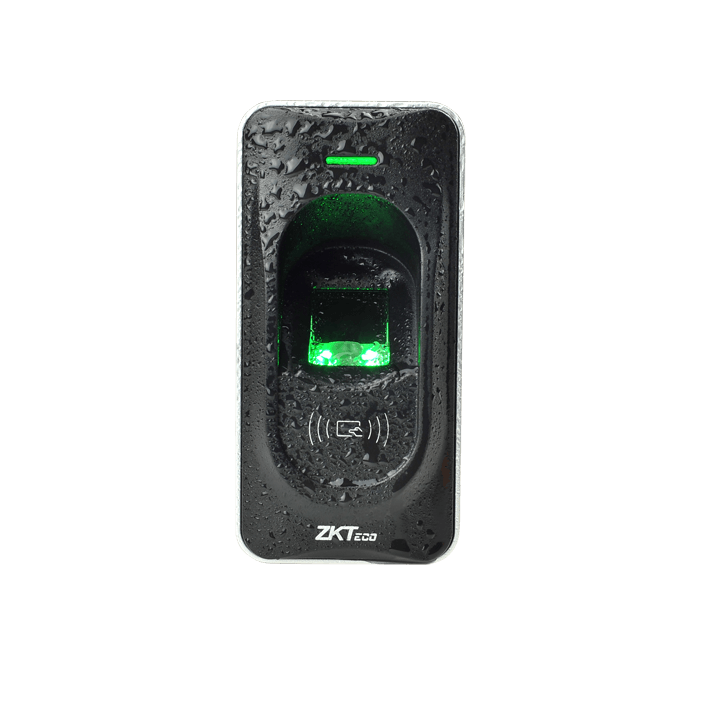

FR1200 fingerprint + RFID card slave reader

FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.

CPU324 MHz
Fingerprint SensorZK Small Size Sensor
Algorithm VersionZKFinger VX10.0
Standard FunctionID Card Module
Optional FunctionMF Card Module
Voice PromptBuzzer
Power SupplyDC 12V
Operating Temperature0 ~ 45°C (32°~113°F)
Protection GradeIP65
Dimension(L x W x H)102 x 50 x 37mm

FR1200 works with inBIO series control panel or standalone device by RS485

IP65 certified for outdoor working environment
