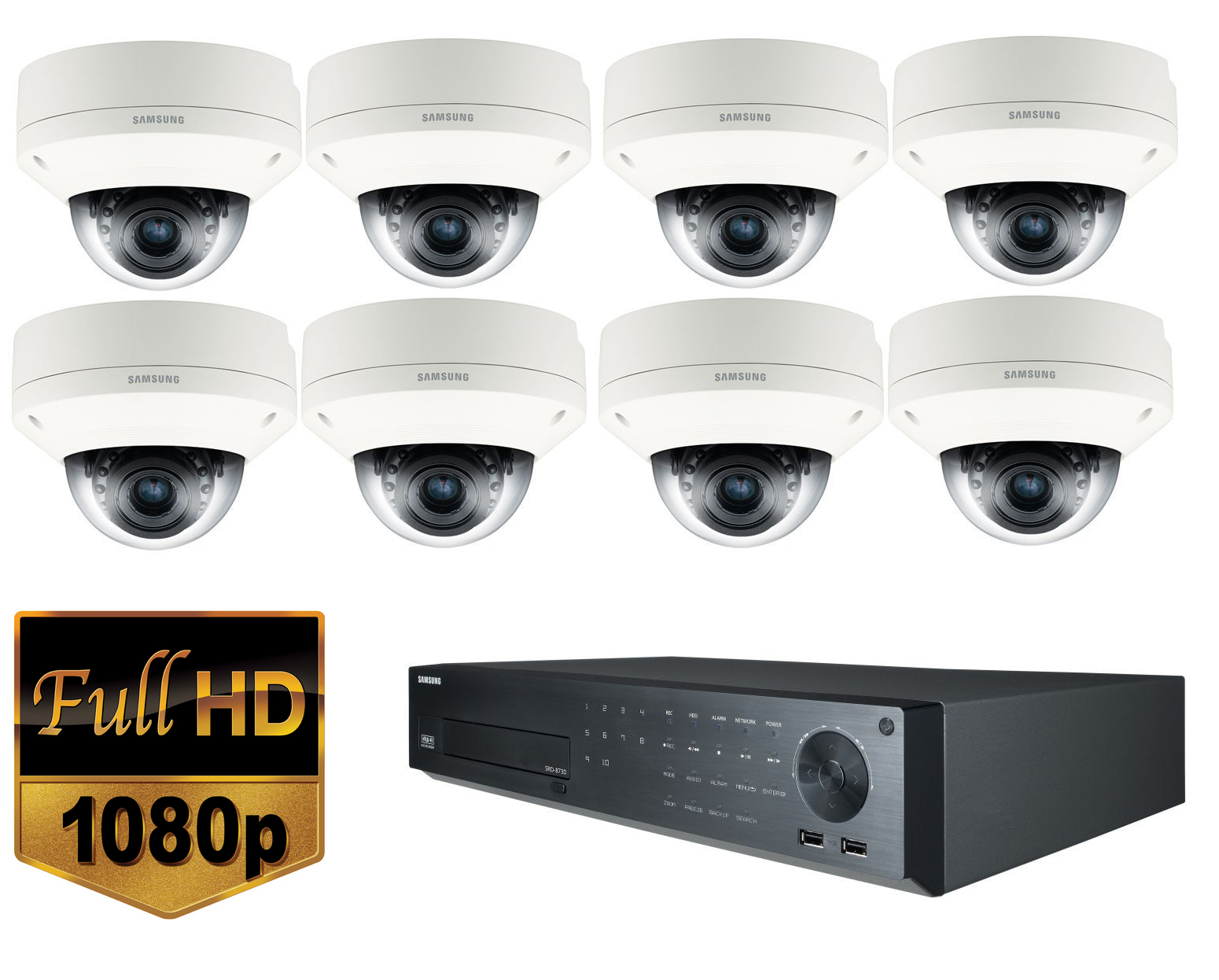

8 Channel CCTV system with high resolution camera
Datamine supply and install 8 channel DVR or NVR CCTV system for home, office, retail and factory. 8 channel DVR come with high resolution AHD camera and 4TB surveillance grade hard disk. All our HD CCTV camera and DVR system come with 1 year and 2 years warranty respectively. We do free site survey and provide most suitable CCTV system package.
Hikvision, Dahua network DVR system adopts high performance video processing chip with embedded Linux operation system. DVR come with H.265 compression for more video storage and single or dual SATA interface. Also support VGA, HDMI view and mobile apps allow to view from mobile phone. For more details and CCTV quotation call us or email to us.
| MODEL | DESCRIPTION |
| Model | DM-2008DR (8 Channel DVR) |
| Main Processor | High performance embedded micro processor HI3515 Processor |
| System Resources | Pentaplex function: Live, Recording, Backup&Remote access |
| Control Mode | Front panel, USB mouse, Network, IR remote control |
| Video Input | 8 Channel BNC |
| Video output | 1 Channel TV BNC, 1 VGA, 1 HDMI |
| Audio Input | 8 Channel RCA |
| Audio output | 1 Channel RCA |
| Display Split | 1 or 4 or 8 or 9 |
| Display resolution | 1024x768, 800x600 |
| Privacy Masking | 4 self-defined four-sided zones for each camera |
| OSD | Camera title, Time, Motion detection, recording |
| Recording resolution | D1(704x576 / 704x480) CIF (352x288 / 352x240) |
| Recording Encoding speed | CH1~CH8 CIF (1-25/30FPS) |
| Recording Image Quality | 1~6 levels (level 6 is the best, VBR effectively) |
| Playback Channel | 1~8 Channel simultaneously |
| Playback Search mode | Time/Date, Alarm, Motion Detection & Exact Search |
| Playback Speed | CIF 200/240FPS |
| Backup Mode | Flash drive/USB HDD/USB CD/Network download |
| Alarm Input/Output | 8 Channel (option) |
| Network Funcions | TCP/IP, UDP, DHCP, DNS, PPPoE, DDNS, FTP, Email |
| Remote Operation | Monitor,PTZ Control, Playback, System Setting, File download, Log Info |
| Hard Disk Capacity | 2 SATA port max 4TB HDD or 1 SATA port with 1DVD RW |
| HDD space occupation | Audio:28.8MB/Hrs, Video:56-400MB/Hrs |
| Auxiliary Interface | 2 USB ports, 1 for mouse and 1 for backup |
| RS485 | PTZ control |
| Dimension | 1U, 355mm x 255mm x 60mm (W x D x H) |
| Weight | 3.5Kg (without HDD) |
| Power supply | DC12V |
