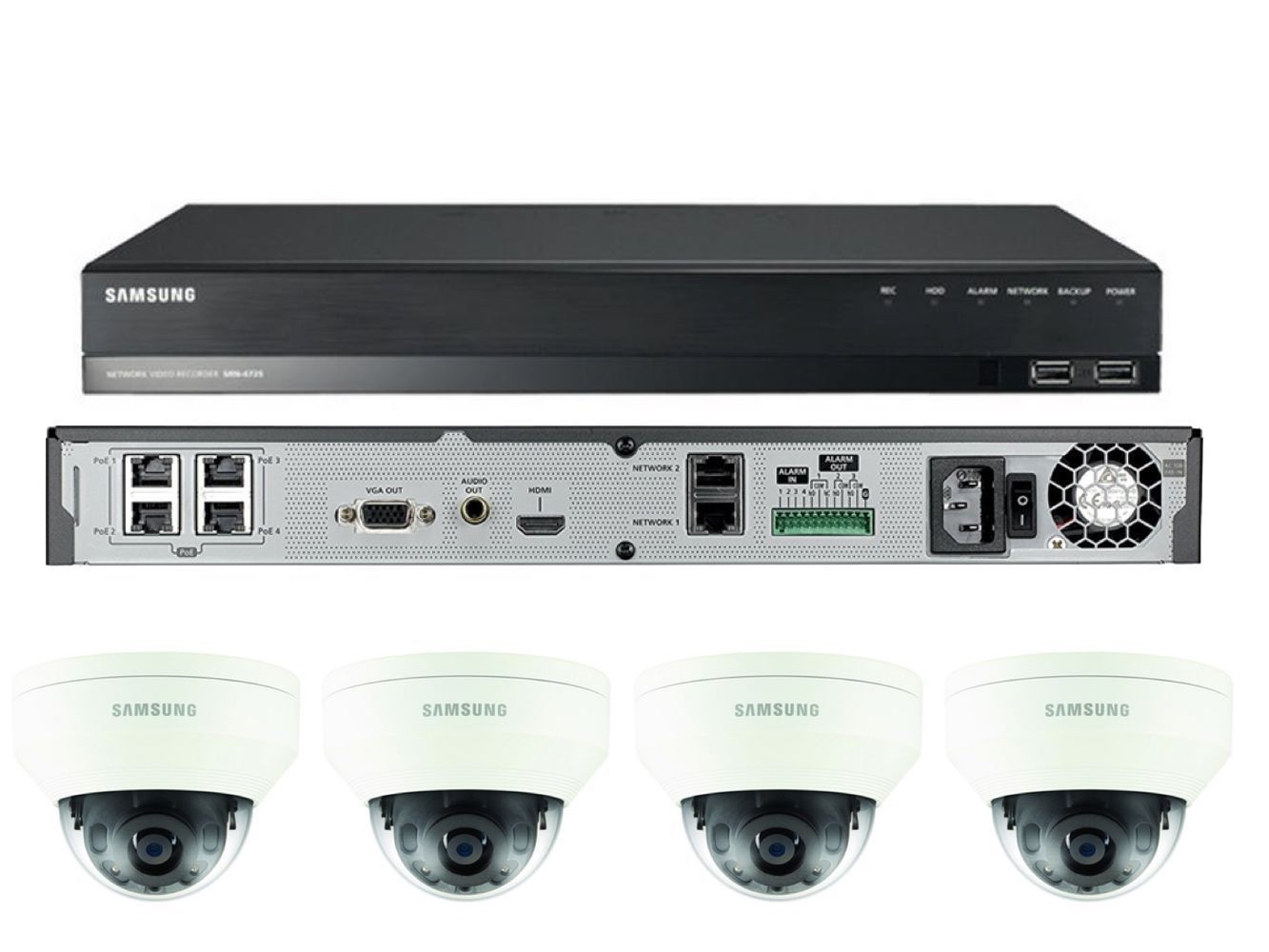

SINGAPORE 4 CHANNEL CCTV SURVEILLANCE SYSTEM
Datamine supply and do installation service for home, office CCTV system. 4 Channel CCTV system come with 4 AHD/IP HD camera and 1TB surveillance grade hard disk with reasonable price.
Customer can choose from variety of camera (AHD, HD) and DVR within budget. We do installation with remote access setup. Can access CCTV view from mobile phone with CCCTV remote view apps.
| MODEL | DESCRIPTION |
| Model | DM-2004DR (4 Channel DVR) |
| Main Processor | High performance embedded micro processor HI3515 Processor |
| System Resources | Pentaplex function: Live, Recording, Backup&Remote access |
| Control Mode | Front panel, USB mouse, Network, IR remote control |
| Video Input | 4 Channel BNC |
| Video output | 1 Channel TV BNC, 1 VGA, 1 HDMI |
| Audio Input | 4 Channel RCA |
| Audio output | 1 Channel RCA |
| Display Split | 1 or 4 |
| Display resolution | 1024x768, 800x600 |
| Privacy Masking | 4 self-defined four-sided zones for each camera |
| Recording resolution | D1(704x576 / 704x480) CIF (352x288 / 352x240) |
| Recording Encoding speed | CH1~CH4 D1 (1-25/30FPS) |
| Recording Image Quality | 1~6 levels (level 6 is the best, VBR effectively) |
| Playback Channel | 1~4 Channel simultaneously |
| Playback Search mode | Time/Date, Alarm, Motion Detection & Exact Search |
| Playback Speed | CIF 100/120FPS |
| Backup Mode | Flash drive/USB HDD/USB CD/Network download |
| Alarm Input/Output | 4 Channel (option) |
| Network Funcions | TCP/IP, UDP, DHCP, DNS, PPPoE, DDNS, FTP, Email |
| Remote Operation | Monitor,PTZ Control, Playback, System Setting, File download, Log Info |
| Hard Disk Capacity | 2 SATA port max 4TB HDD or 1 SATA port with 1DVD RW |
| HDD space occupation | Audio:28.8MB/Hrs, Video:56-400MB/Hrs |
| Auxiliary Interface | 2 USB ports, 1 for mouse and 1 for backup |
| RS485 | PTZ control |
| Dimension | 1U, 355mm x 255mm x 60mm (W x D x H) |
| Weight | 3.5Kg (without HDD) |
| Power supply | DC12V |
