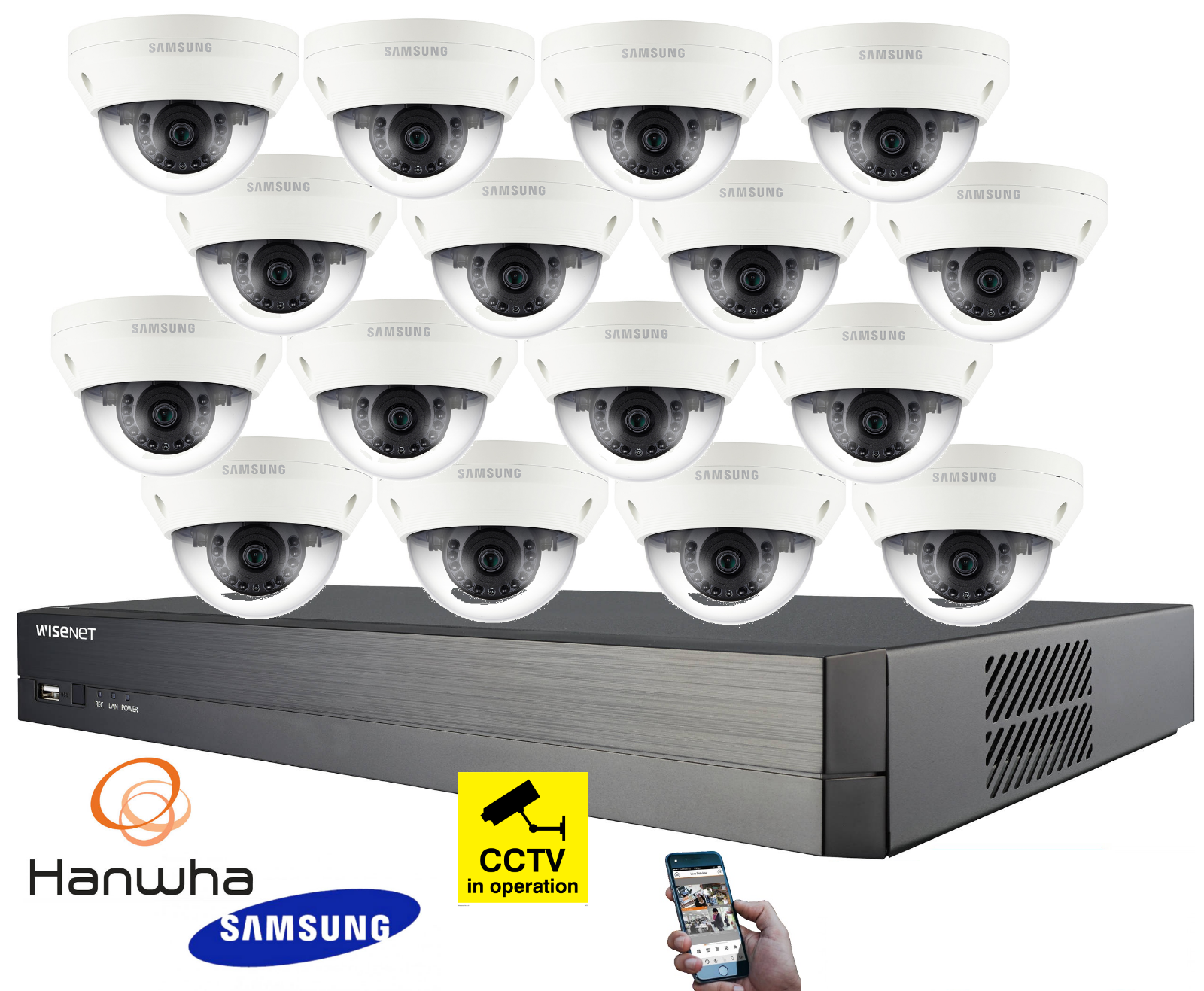

16 Channel HD CCTV surveillance security system
Datamine supply and do installation 16 Channel DVR or NVR for office, factory and commercial building. We do have 2MP, 3MP, 4MP, 5MP, 8MP high resolution camera for high quality video and picture. We do installation of CCTV camera with CAT 5e cable and PoE network switch. We can supply indoor and outdoor camera for the required location.
Datamine do professional design, installation, testing & commissioning for CCTV surveillance security system. We do for office, commercial building and industries. All reliable CCTV products come with warranty. For site survey and quote call us or email to us.
| MODEL | DESCRIPTION |
| Model | DM-2016DR (16 Channel DVR) |
| Main Processor | High performance embedded micro processor HI3520 Processor |
| System Resources | Pentaplex function: Live, Recording, Backup&Remote access |
| Control Mode | Front panel, USB mouse, Network, IR remote control |
| Video Input | 16 Channel BNC |
| Video output | 1 Channel TV BNC, 1 VGA, 1 HDMI |
| Audio Input | 4 Channel RCA |
| Audio output | 1 Channel RCA |
| Display Split | 1 or 4 or 8 or 9 or 16 |
| Display resolution | 1024x768, 800x600 |
| Privacy Masking | 4 self-defined four-sided zones for each camera |
| OSD | Camera title, Time, Motion detection, recording |
| Recording resolution | D1(704x576 / 704x480) CIF (352x288 / 352x240) |
| Recording Encoding speed | CH1~CH16 CIF (1-25/30FPS) or CH1~CH16 D1 (1-11FPS) |
| Recording Image Quality | 1~6 levels (level 6 is the best, VBR effectively) |
| Playback Channel | 1~16 Channel simultaneously |
| Playback Search mode | Time/Date, Alarm, Motion Detection & Exact Search |
| Playback Speed | CIF 400/480FPS |
| Backup Mode | Flash drive/USB HDD/USB CD/Network download |
| Alarm Input/Output | 4 Channels |
| Network Funcions | TCP/IP, UDP, DHCP, DNS, PPPoE, DDNS, FTP, Email |
| Remote Operation | Monitor,PTZ Control, Playback, System Setting, File download, Log Info |
| Hard Disk Capacity | 2 SATA port max 4TB HDD or 1 SATA port with 1DVD RW |
| HDD space occupation | Audio:28.8MB/Hrs, Video:56-400MB/Hrs |
| Auxiliary Interface | 2 USB ports, 1 for mouse and 1 for backup |
| RS485 | PTZ control |
| Dimension | 1U, 355mm x 255mm x 60mm (W x D x H) |
| Weight | 3.5Kg (without HDD) |
| Power supply | DC12V |
