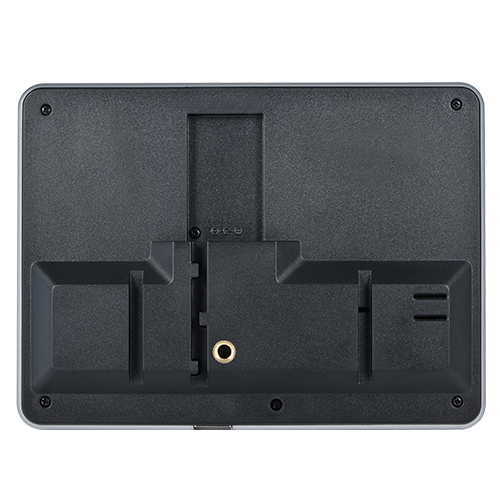

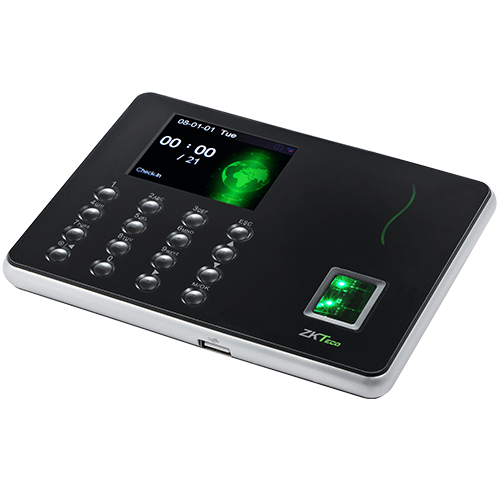

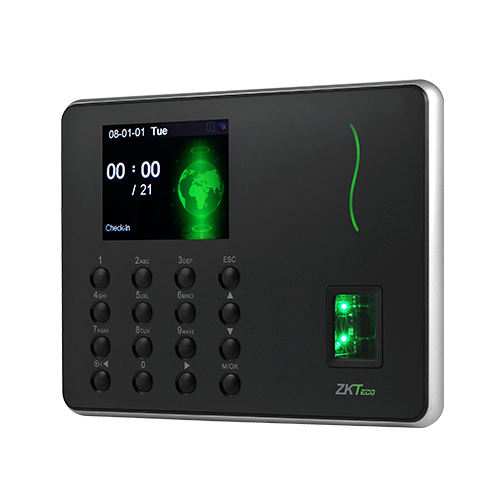

WL10 Wireless Time Attendance Terminal

WL10 is Fingerprint Time & Attendance Terminal with Wi-Fi module. With Wi-Fi function, User needn’t wire Ethernet cable, it supports hotspot mode and allow mobile APPs connection and check in/out and download record directly. It’s associated with ZK new fingerprint reader, the operation remains stable under strong light source and high preciseness of verification of wet and rough fingers. It also has elegant design and slim sharp, it will start new stage of time attendance.

Display 2.8-inch TFT Screen
Finger print Capacity 1000 / 1500 (without SSR)
Record capacity 50,000
Id Card Capacity 10,000(optional)
Standard Functions SSR, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input 9 digit user ID
Optional FunctionTA Assistant APP, Time Cube Cloud Solution
Power SupplyDC 5V 0.8A
Operating Temperature 0-45 °C
Operating Humidity 20%-80%
Dimensions 168 x 125 x 22.5 mm
Build-in SSR Excel software, Shift and Report management
Mobile phone APP TA Assistant download report and shift Management
Quick recognition of dry, wet and rough fingers
Wi-Fi, USB client & host
