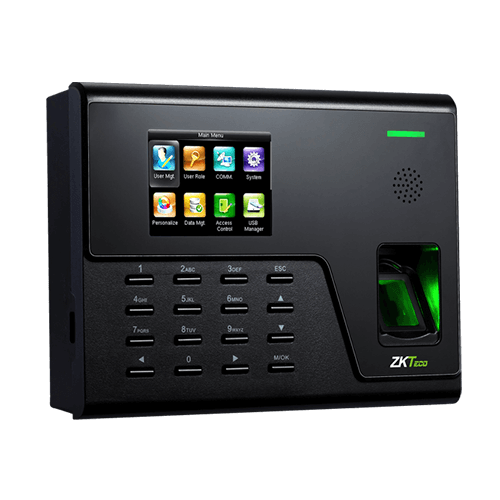

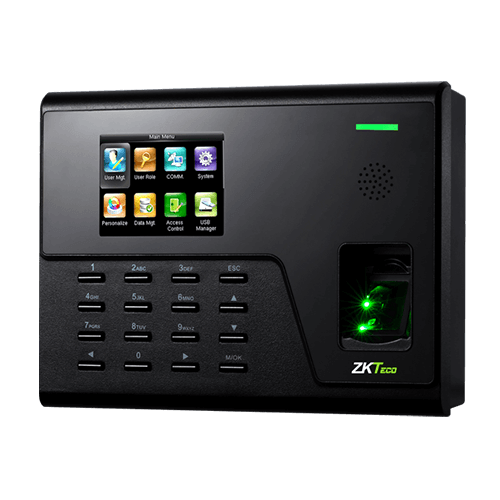

UA760 FINGERPRINT TIME & ATTENDANCE AND ACCESS CONTROL TERMINAL


UA760 is a 2.8 inches color screen biometric terminal for Time & Attendance, and Access Control (primary) applications. It adopts BioID fingerprint collector for excellent recognition and internal WiFi for convenient communication. Users can manage data via TCP/IP, WiFi, and USB host port for data up/download to avoid the risk of accidental deletion. Besides, optional WDMS can achieve remote data management with our ZKTime.Net 3.0.

Display 2.8’ color screen
Finger print Capacity 3,000
Record capacity 50,000
Id Card Capacity 3000 (optional)
Display Language English
CommunicationsTCP/IP, WiFi, USB-host
Standard Functions9 Digit User ID, T9 Input, SMS, DST, Self-Service Query, Automatic Status Switch, Ring bell
Optional FunctionsID/Mifare, WDMS, RS232 External Printer
Power SupplyDC 12V/1.5A
Dimension186*138*43.6mm (LxWxT)
Operating Temperature 0 °C - 45 °C
Operating Humidity 20%-80%
Optional Functions ID/Mifare, WDMS, RS232 External Printer
Dry, moist, or rough fingerprints can work well
USB 2.0
Wi-Fi
