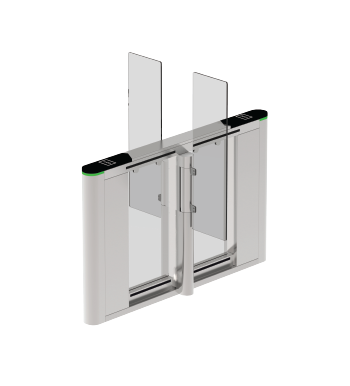

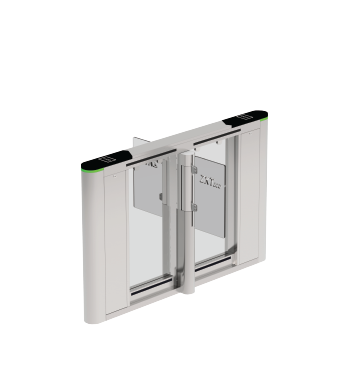

SBTL8200 Series Entrance Control Turnstile


SBTL8200 is suitable for indoor environment. It is made of SUS304 stainless steel.

SBTL8200 has low, high, or ADA barrier options.

Modular reader panel - respond to the market faster
Servomotor - faster opening speed
10 pairs of infrared sensors for stronger tailgate detection
SUS304 stainless steel casing
Higher durability for longer product life cycle
Easy switch, easy installation - RFID, fingerprint, face, etc.
Bi-directional operation control
LED passage indicator in both directions
Convenient installation and maintenance
Various optional panels
Emergency mode allows free access when power failures or emergency
Power requirementsAC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature-28℃ ~ 60℃
Working humidity20% ~ 95% (Non-condensing)
Working environment Indoor
Speed of throughputMaximum 40/ minute
Lane width(mm)660
Footprint(mm*mm) 1600*870
Dimensions (mm)L=1600, W=870, H=1200
Net weight(kg)86
Weight with packing(kg)100
Emergency Mode Y
Cabinet materialSUS304 Stainless Steel
Lid material SUS304 Stainless Steel + Acrylic
Barrier materialAcrylic
Barrier movementSwing
