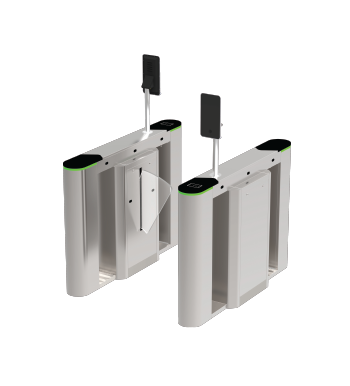

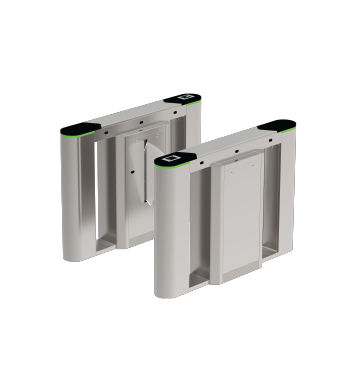

FBL6000 Pro


SUS304 stainless steel casework, Ergonomic design, Elegant and cost-effective.

FBL6000 Pro barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL6000 Pro’s reader (RFID, fingerprint and facial) positively recognizing a user’s valid access card, fingerprint and face, its barriers retract upward automatically, thus allowing users passage to the secured side.

During emergencies, the barriers automatically retract upward, thereby avoid users being trapped. A capacitor board for power outage safety can be installed for retracting the barrier automatically.

FBL6000 Pro provides both security and convenient space, all in a very durable and elegant compact design.

Reliability
SUS304 stainless steel casework ensures long-lasting durability.
High-quality electrical components.
Safety Features
Barriers retract automatically during a power outage with capacitor board installed.
All smooth finishing. No exposed screws.
Ergonomic design makes card, fingerprint, and face, authentication fast & simple for users.
Built-in Reader Integration
FBL6000 Pro series is already integrated with our customers’ preference for either card, fingerprint or face, access control reader. This greatly reduces installation time & expense.
FBL6000 Pro series and associated access control readers are all factory-tested prior to shipping.
ZKTeco provides true plug & play turnstiles with the lowest possible total cost of ownership in the industry.
Simplification
LCD on the flap barrier control board, easy operation.
Power requirementsAC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature-28℃~ 60℃
Working humidity5% ~ 80%
Working environmentIndoor/outdoor (if sheltered)
Speed of throughputMaximum 30/ minute
Lane width(mm) 600
Footprint(mm*mm)1400*1200
Dimensions(mm)L=1400, W=300, H=1000
Dimension with packing(mm)L=1500, W=380, H=1100
Net weight(kg) 130
Weight with packing(kg)200
LED indicator Y
Cabinet materialSUS304 Stainless Steel
Lid materialSUS304 Stainless Steel + Acrylic
Barrier materialAcrylic
Barrier movementRetracting
Emergency modeY
Security levelMedium
