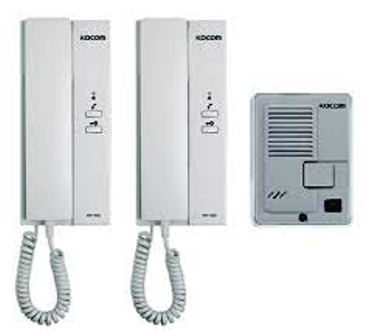

KDP602AD With DS-2D System


Datamine provide Singapore most cheap and reliable KOCOM Intercom system.
• Triplex interphone & doorphone
• Upto 3 audio handset with 1 outdoor panel connection
• Audio conversation with visitor
• Door open function
• Internal call & conversation with extended units
• Gentle electronic sound
• Easy installation

ModelKDP-602AKDP-602D
PowerAC110V or AC220VDC 12V
Power consumptionMax. 150mA
Assurance temperature0°C~ 50°C
Wiring call sound Door : 2wires, Chime Audio handset : 5wires, Melody
Max. wiring distance Ø0.6 single cable : 300m, 5C-2V coaxial cable : 500m
Mount typeSurface mount
Body0.5kgs (1pc)
Weight(Approx. kg)92(w) X 210(H) X 57(D)
Outdoor connectionMS-2D, DS-2Dm KC-MD10, KC,MD20
KDP601A-diagram
