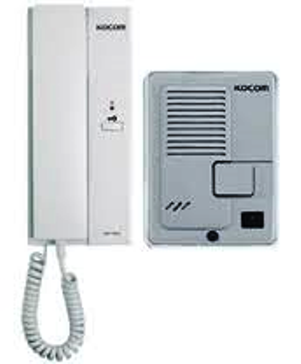

KDP601A With DS-2D System


Datamine provide Singapore most cheap and reliable KOCOM Intercom system.
Upto 4 houses connection
• Audio conversation with visitor
• Door open function
• Gentle electronic sound
• Easy installation

Model KDP-601A
Power AC110V or AC220V (± 10%)
Power consumptionMax. 150mA
Assurance temperature0°C~ 50°C
Wiring call sound 2wires
Max. wiring distance Ø0.6 single cable : 300m, 5C-2V coaxial cable : 500m
Mount typeSurface mount
Body0.5kgs (1pc)
Weight(Approx. kg)92(w) X 210(H) X 57(D)
Outdoor connectionMSD-1B

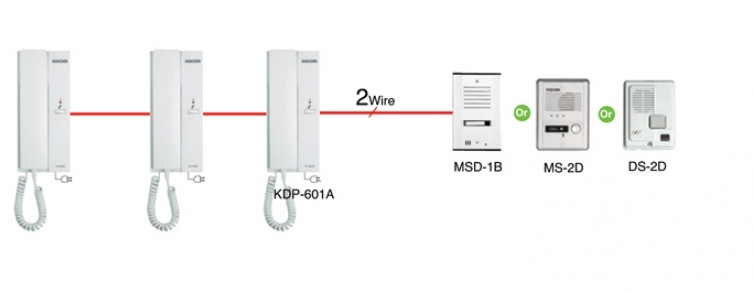

KDP601A-diagram
