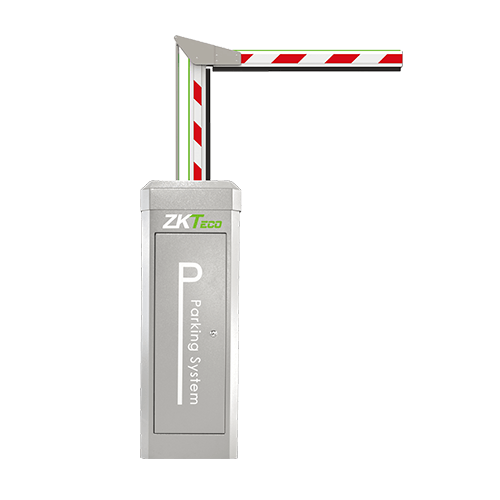

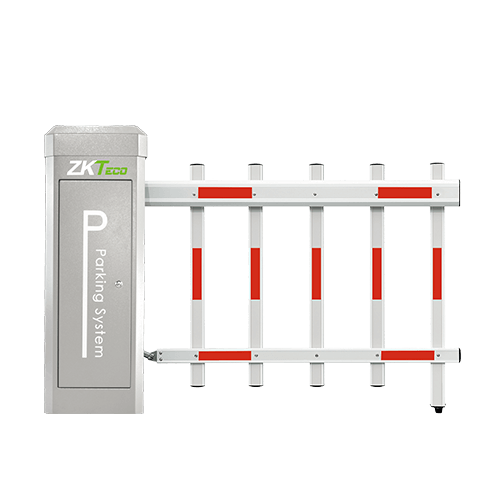

ProBG2000 Series
LED light strip is optional for the boom. Mean Cycles Between Failure (MCBF) is upto 5 million times.The product lifespan is 10 times longer the traditional barrier gate.
The gate's opening/closing speed is quick and can widely adjust from 0.9s- 10s, depends on vehicle flow and boom length. It can operate normally at temperature as low as -45°C and as high as 75°C.
When a Vehicle hits the boom, it swings out to avoid further damage. It has impact-resistance rubber strip.
Supports fleet mode and open recording function. Gate can be closed after vehicle sensor has detected specified number of vehicles passed.
Supports global standard voltage of 100-240V AC and 24VDC low voltage power supply. Low power consumption and energy saving design. lts barrier gate can save upto 500kWh per year.
Motor Type | Servo Motor |
Boom Type | Straight boom |
Boom Length | Supports 3m/4.5m/6m (adjustable) |
Ingress Protection Level | IP54 |
Operating Temperature | -40°C to +75°C |
Power Supply | 24V DC, AC 100 to 240V AC |
Boom Material | Aluminum and wood |
Boom Type | Straight telescopic boom |
Net Weight | 45kg |
Related Products
-
View
Details
FBL5000 Pro
The FBL5000 Pro is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL5000 highly durable.
-
View
Details

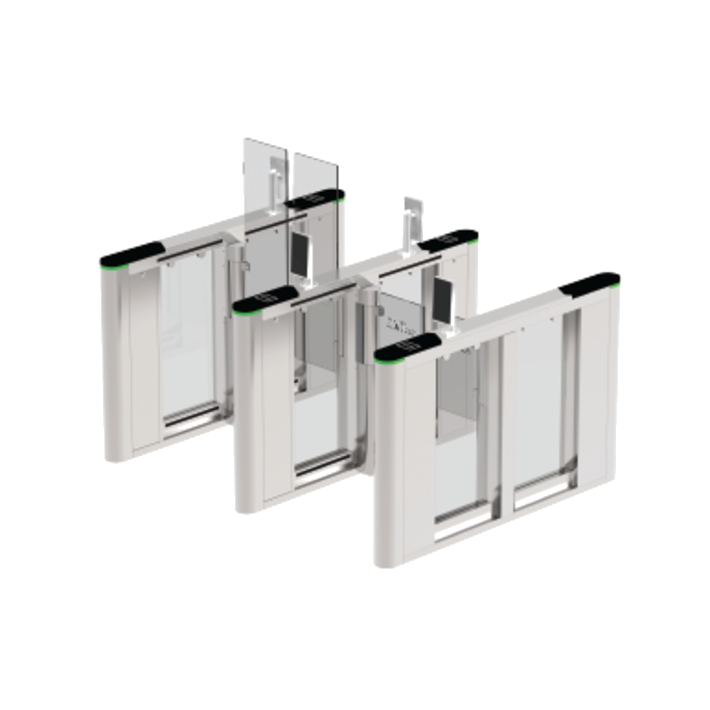

SBTL8000
