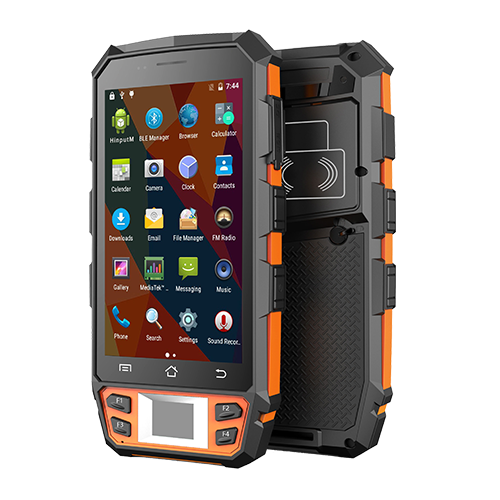

HB510 Portable biometric time recorder

Latest and reliable HB510 multi biometric and multi-function mobile/handheld time attendance recorder. HB510 fully adopts 4G NetCom communication and integrated with face recognition, fingerprint scanner, NFC and barcode scanner function. HB510 is used for mobile time attendance collection and transfer to online time attendance server.

HB510 come with mobile time attendance software and online payroll system. Can access the time data from anywhere. Mobile attendance time recorder can bring along to the workplace and can scan the employees time IN/OUT. HB510 mobile attendance reader will transmit time data to TMS server via 4G network for real time monitoring.

CPUQuad core 64 bit Cortex A53 1.3GHZ
Display5 inch IPS HD screen Corning gorilla touch screen
Image Resolution720*1280 pixel
CameraRear 8 million pixels, comes with flash, auto focus
Operating SystemAndroid 7.0
Development ToolsCan provide the corresponding SDK
Operating Frequency13.56MHz± 7kHz(fc)
CommunicationWi-Fi, 4G, Bluetooth 4.0
Interface SocketUSB2.0
Optional FunctionFingerprint recognition, Face recognition, Barcode and NFC
LED IndicatorYes
Power Consumption5V 2A
Battery4500mAh Li-polymer
Operating Environment0~+50 °C; 90% r.h.
Android system, quad-core processor, high-capacity storage space
5 inch 720P HD screen Corning Gorilla Glass touch screen
