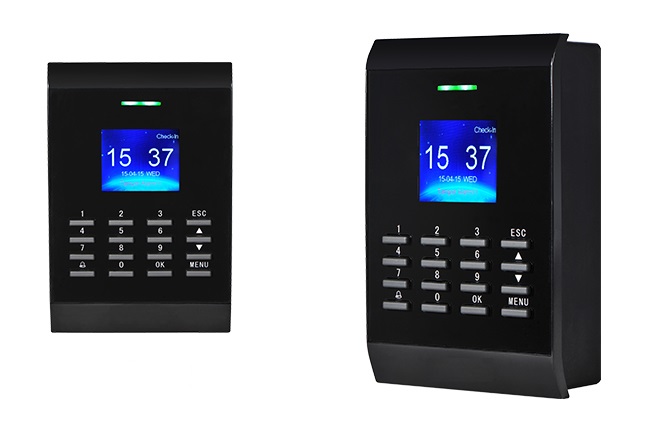

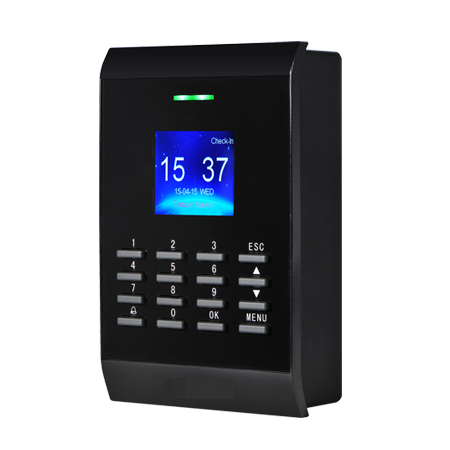

SC405 Proximity card Door Access terminal

SC405 RFID card Door Access Security System Singapore

Click picture to enlarge!!!

Datamine is Singapore most reliable proximity/RFID/Mifare/HID card door access security system provider. We have multiple card access door access security system reader/controller to choose suitable one. Also we supply fingerprint door access system, facial door access security system and HID card/HID iclass card door access system. We do door access security system installation and door access control software setup. Datamine supplies all type of door access security system accessories with reasonable price.

SC405 is a proximity RFID card door access control system Terminal. This proximity card access reader comes with 2” color display with graphical user interface for easier to access the machine. RFID card SC405 Proximity card access door access security control machine have an auxiliary input function, which is enhances the flexibility to be connected with electromagnetic lock (EM Lock), emergency exit, and bypass key switch.

More Products

SilkBio-101TC Face

Door Accessories

Multibio 800 Door Access

SC700 RFID Door Access


• 2.0-inch color display with graphical UI for easy operation

• Up to 24 user-defined schedules that can be activated on a daily bell alert

• Prompt audio acceptance or rejection signals for valid or invalid cards

• TCP/IP or RS485 communication for various networking environments

• Supports USB flash drive for offline data management

• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

• Multi-verification methods to enhance security level

• Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.

• Duress Alarm offers effective protection against duress by threats

• Tamper Proof Switch and multiple alarm outputs

• Multi-languages


ID card Capacity30,000
Transaction Capacity80,000
CommunicationTCP/IP, RS485, USB-Host
Access Control Interface for3rd party EM lock, door sensor, exit button, alarm, doorbell
Auxiliary Interface1ea for linkage function
Wiegand SignalOutput & Input & SRB
Standard FunctionsAnti-passback
Optional FunctionsMifare,Print Function
DisplayTFT LCD Color Screen
Power SupplyDC 12V
Operating Temperature0°C ~ 45°C
Operating Humidity20% ~ 80%
SDKStandalone SDK


Contact Us for your complete proximity door Access security System solutions
