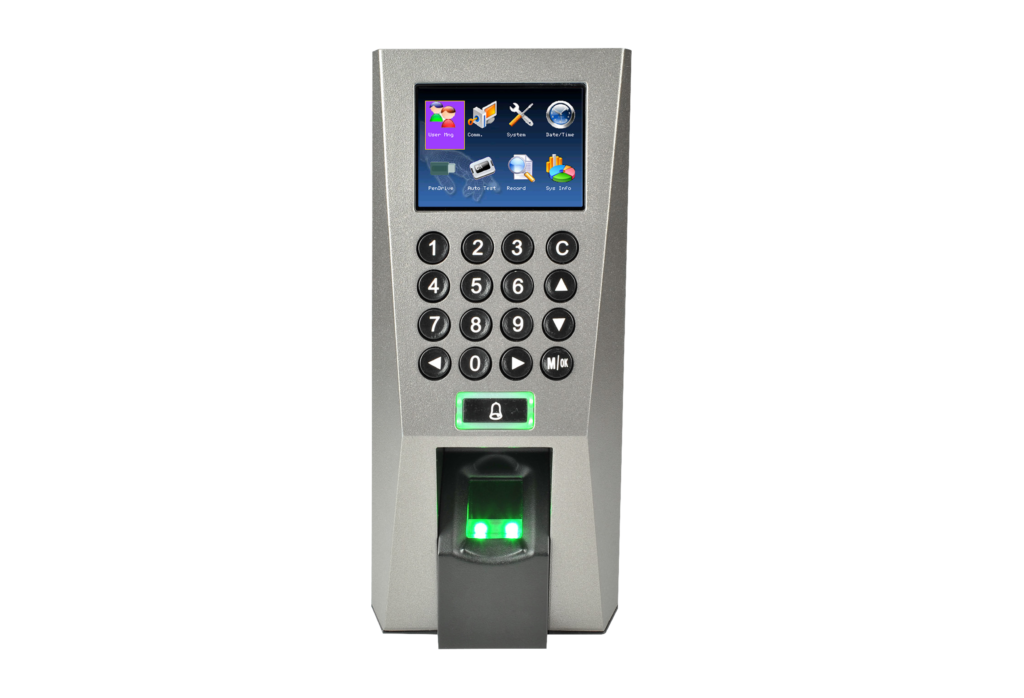

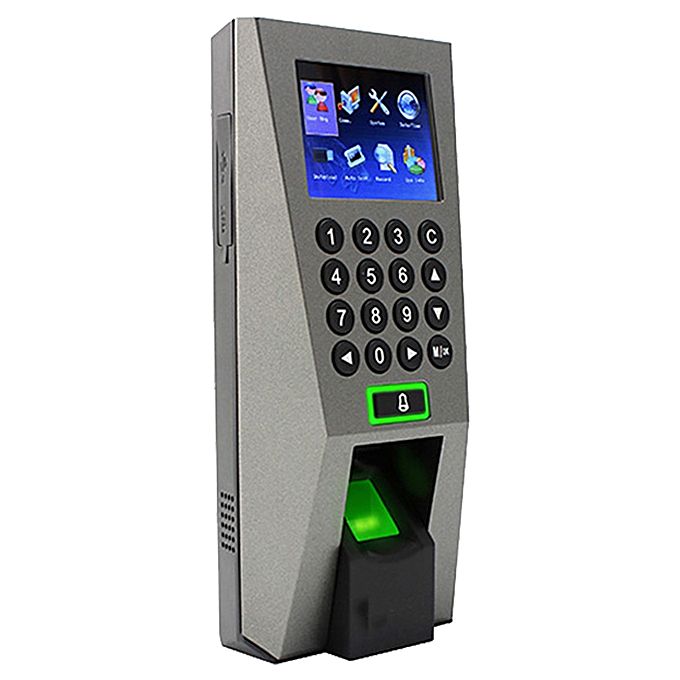

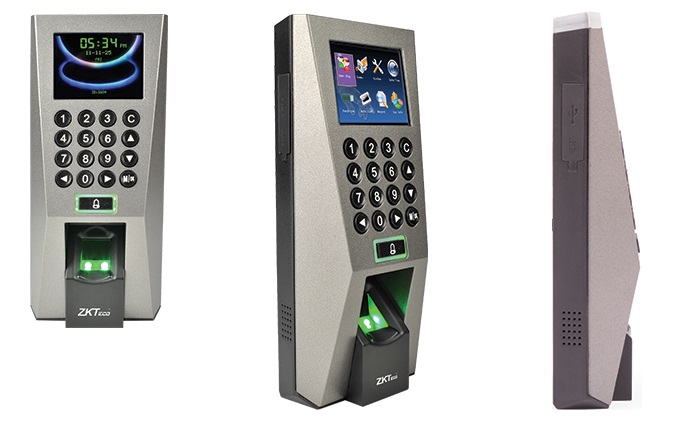

DM-F18 Biometric Door Access Terminal/controller

DM-F18 Biometric Door Access System singapore

Click picture to enlarge!!!



Datamine is Singapore cheap biometric/proximity door access control system provider. We provide biometric finger print door access system, Face recognition door access control system, Finger vein door access system and proximity card/HID card door access system. All door access control systems come with door access control software and time attendance software. We do have more variety of door access controllers to choose within your budget.

F18 biometric door access is an innovative biometric fingerprint door access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F18 biometric door access features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image will display on the screen . That will guide the user to put the finger on to proper position and increase the recognition rate.

F18 biometric door access recorder come with color screen and proximity card reader. Latest updated fingerprint scanner can capture all kind of finger prints.

F18 biometric/proximity door access system come with TCP/IP and RS485 are available that the device can be used in different network.


More Products

X7 Door Access





F21 Door Access





TF1700 Door Access





FV200 Door Accesss

Specifications:

Display TFT LCD Screen
User Capacity 1500
ID card Capacity 5000
Transaction Storage 30,000
SensorZK Optical sensor
Display Language English
Algorithm Version VX 10.0
CommunicationsRS232/485, TCP/IP, USB Host
Sensing Area18mm x 22mm
RF reader EM proximity card (Build in)
Access control interface3rd party EM lock, door sensor,exit button, alarm and door bell
Wiegand Signal Output and Input
Verification 1:1 Time <0.5 sec and 1:N Time <2 sec
Power Supply 12V DC
Standards Compliance CE, FCC
Operating System Linux
Operating Temperature 00C 45C
Operating Humidity 20% - 80%
Optional Functions ID/Mifare/HID card, Web server

Features:

1 touch a second user recogition
Fingerprint reader with durable and highly accurate ZK optical sensor
Stores 1500 templates, 5000cards and 30000 transactions
Integrated smart card reader
Build in USB port
Multi authentications (FP, PIN, FP+PIN)
Multi Deployment (Standalone, LAN, WEB)
Tamper proofs switch and alarm outputs
Audio-visual indications for acceptance and rejections of valid/invalid fingers scan



Contact Us for your complete biometric door access control system solutions.
