N5100 Door Access

Entry Pass N-5100 Door Access

Click picture to enlarge!!!


Datamine provide Singapore most cheap and reliable N5100 door access system.

EntryPass Active Networks are designed to enhance highly customized and rapid ‘real-time’ changes to the underlying network operation. Brilliantly engineered with all the power you need to enable code-sending, minus unnecessary buffer time with its distributed architecture capable of processing access demand at the edge level without leveraging at the server end.

  • Feature
  • Specification

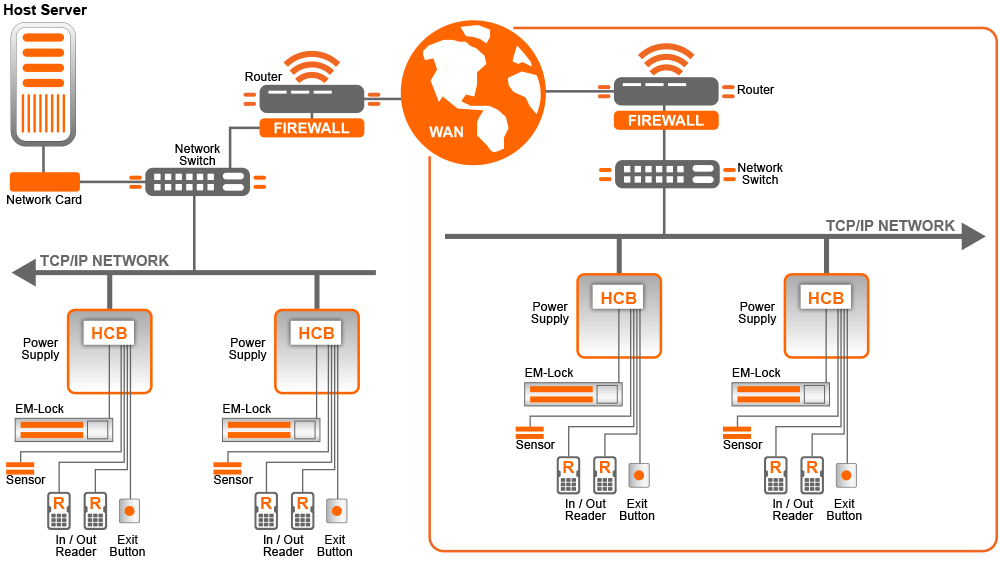

  • System


2 In doors interlocking within the control panel, no external wiring is needed. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.


Rather than keeping the event transaction in the memory awaiting for the host server to poll, HCB based network control panel actively transmit the event back as it occurred. This asynchronous communication also reduces the bandwidth requirement significantly when operates over the network.


Based on the latest HCB (Hybrid Compact Board), N5100 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. It features a 32bits Freescale ColdFire microcontroller running at 60MHz, this control panel can fulfill most demanding requirement in physical access control environment.

Feature Highlight

Quick Terminal Plug-in Connectors

Firmware Upgrade via Server

Reader Output Control

Onboard & Cross-Board Door Interlocking

Support 3,000 Users And 10,000 Event MemorySupport Single / 2-In doors

Support Car Park Mode

Compatible with various reader technologies

ActiveTransmit & ActiveDownload

Peer To Peer Global Anti-Passback

Configurable Digital / Supervised inputs (4)

MCU 32bits @ 60MHz
Memory 256K Flash Memory
32K SRAM (Buffer)
64Mbits Non-Volatile SPI Flash Memory (Storage)
Card holder 3,000
Event Transaction 10,000
Digital/Supervise Inputs 4, User con?gurable
(Door Sensor/Request-To-Exit/Fire Input/General Purpose)
Digital Output Max. 2 Dry contact Relay
Network Communication Port 1 - RJ-45 Self-Negotiate 10/100mbps
Power Protection Resettable Fuse - 2.5A
Surge Protection TVS - Up to 15KVA
Onboard LED Control Power / Communication / LAN / Event / Error
AC Fail Monitoring Yes
Battery Monitoring Yes (Firmware threshold control to shutdown control panel)
External Short Circuit Protection At readers
Backup Battery Yes, Apply to RTC only
